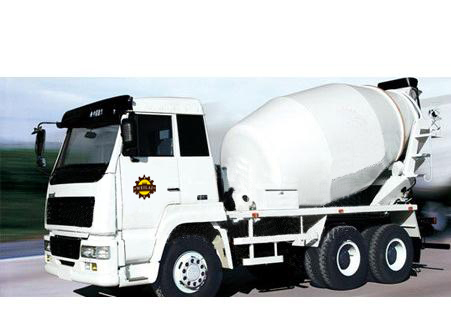

FYG5311GJBC/14
MAIN FEATURES
1. Based on hundreds of experiments of discharging rate ,charging rate, mix rate, twist spring, running performance and absorbability of the experience of the mechanical design, manufacture, welding ,we have produced the concrete mixer which is the ideal transportation equipment for the commercial concrete,
2. There are various choices ranged from 8cbm,9cbm,10cbm,12cbm for the customers .we can choose the well-known chassis from the Europe, Japan, Chinese with powerful drive
3. Moreover, the oil pump ,motor ,and the condenser is adopted the famous foreign production to ensure the quality
4. The production above is just for reference, please contact the sellers without any hesitation if you need the specific affairs requested
TECHNICAL SPECIFICATION
|
|
Model |
FYG5311GJBC/14 |
FYG5313GJBC/15 |
FYG5313GJBC/16 |
|
Mixing Drum |
Mixing drum volume [m3] |
25.8 |
26.7 |
27.5 |
|
Mixing cubage [m3] |
14 |
15 |
16 |
|
|
Mixing drum slope angle[°] |
10 |
|||
|
Feeding speed [m3/min] |
≥3.5 |
|||
|
Discharging speed [m3/min] |
≥2.3 |
|||
|
Surplus rate [%] |
≤0.5 |
|||
|
Slump range [mm] |
50～210 |
|||
|
Hydraulic system |
Pump |
ESTON |
||
|
Motor |
ESTON |
|||
|
Reducer |
BONFIGLIOLI |
|||
|
Water supply system |
Water tank capacity |
450L |
||
|
Water supply type |
Air pressure, pressure: 3～4 Bar |
|||
|
Complete Vehicle Parameters |
Chassis Model |
Howo/ZZ1317N3268W |
Howo/ZZ1317N3667C |
|
|
Curb Weight [kg] |
16440 |
17680 |
||
|
Overall weight [L×W×H,mm] |
10300×2496×3990 |
10900×2496×3990 |
||
|
Wheel base [mm] |
1800/3200/1350 |
1800/3600/1350 |
||
|
Axle |
8×4 |
|||
|
Max. Traveling Speed [km/h] |
90 |
|||
|
Max. sradeability [°] |
36 |
|||
|
Min. Turning Radius [m] |
21 |
24 |
||
|
Engine |
Model |
WD615.95E/WD615.95 |
WD615.96E/WD615.96 |
|
|
Cylinder Number and Arrangement |
Linear 6-cylinder |
|||
|
Rated power [kW] |
247 |
276 |
||
|
Max. Torque[N.m] |
1350 |
1420 |
||
