HZS35

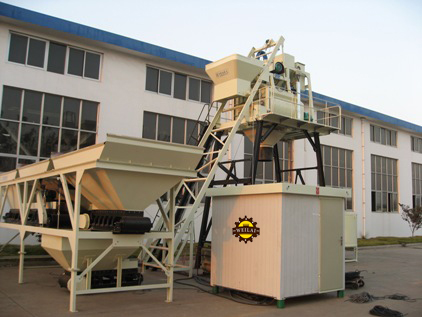

HZS35Concrete mixing plant is composed of material supply、batching system、mixing、electrial control and steel structure. It is ideal concrete equipment for building project, building ground and precast product factory.
MAIN FEATURES
The machine adopts JS750 concrete mixer, it has good mixing quality and high efficiency.
The batching machine adopts PLD1200-Ⅲ, it is measuring nicety and high produce efficiency.
The cement is store in cement silo and feeding by screw conveyor.
The water supply system is composed by water tank,water pump and water weigher.
The whole batching and mixing course is automatism by electrical control system (it also can be hand control).
The structure is simple and easy to install and debug.
It is adopts advanced control system and imports component with high dependability.
TECHNICAL SPECIFICATIONS
| Max. Productivity (m3/h) |
35 |
| Nominal capacity of mixer (m3) |
0.75 |
| Max Weighing Value of aggregate (kg) |
2000 |
| Max Weighing Value of cement (kg) |
400 |
| Max Weighing Value of water (kg) |
200 |
| Max Weighing Value of additive (kg) |
35 |
| Rating transport capacity of screw conveyor (t/h) |
35 |
| Capacity of Cement Cabin (t) |
100 |
| Mixing Power (kW) |
30 |
|
Hoist Power (kW) |
7.5 |
|
Power of Machine (kW) |
70 |
|
Weight of Machine (t) |
25 |
| Outline Dimension（L×W×H) (m) |
15.2x8.5x19.4 |
|
Discharge Height (m) |
3.8 |
|
Aggregate measuring accuracy (%) |
±2 |
|
Water measuring accuracy (%) |
±1 |
|
Cement measuring accuracy (%) |
±1 |
|
Additive measuring accuracy (%) |
±2 |
