HZS60

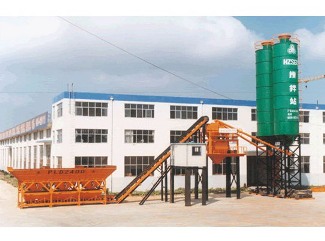

HZS06A Concrete mixing plant is composed of material supply、batching system、mixing、electrial control and steel structure. It is ideal concrete equipment for building project, building ground and precast product factory.
MAIN FEATURES
It adopts knockdown structure and blocking. It is combine mode.
The machine adopts JS1000 concrete mixer, it has good mixing quality and high efficiency.
The batching machine is measuring nicety and high produce efficiency.
The forced water supply system spray equably and has washing function for the mixing system.
It adopts the ectctrial weigher to measure all the aggregate、cement、water、liquid additive.
The electrical system adopts import parts and has credibility performance.
TECHNICAL SPECIFICATIONS
| Max. Productivity (m3/h) |
60 |
| Nominal capacity of mixer (m3) |
1 |
| Max Weighing Value of aggregate (kg) |
3000 |
| Max Weighing Value of cement (kg) |
600 |
| Max Weighing Value of water (kg) |
250 |
| Max Weighing Value of additive (kg) |
50 |
| Rating transport capacity of screw conveyor (t/h) |
35 |
| Capacity of Cement Cabin (t) |
2*100 |
| Mixing Power (kW) |
37 |
|
Hoist Power (kW) |
15 |
|
Power of Machine (kW) |
100 |
|
Weight of Machine (t) |
50 |
| Outline Dimension（L×W×H) (m) |
30x10x19.4 |
|
Discharge Height (m) |
3.8 |
|
Aggregate measuring accuracy (%) |
±2 |
|
Water measuring accuracy (%) |
±1 |
|
Cement measuring accuracy (%) |
±1 |
|
Additive measuring accuracy (%) |
±1 |
