MC450

Introduction

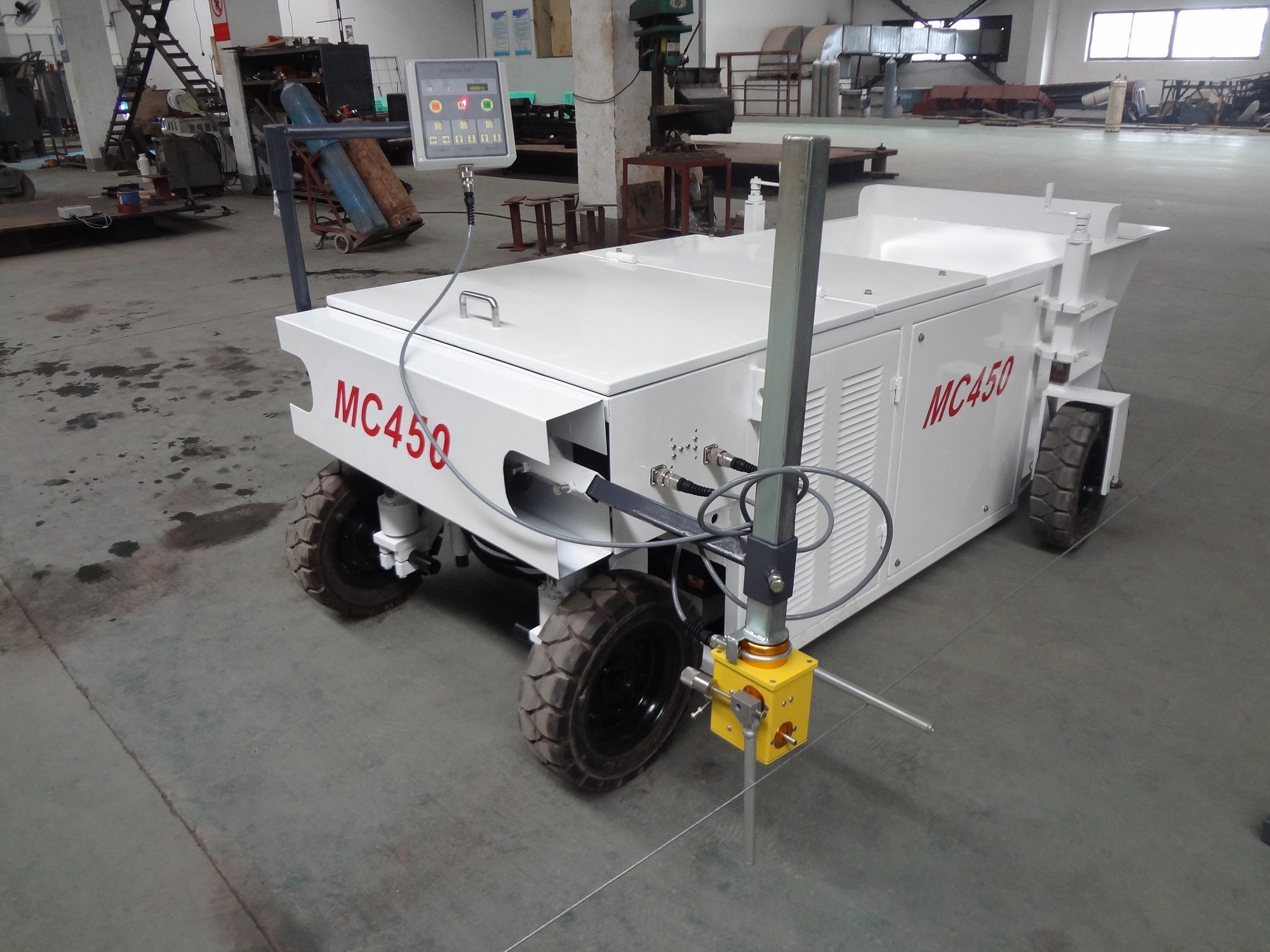

MC450 is a kind of on site kerbmaker machine which produces curb & gutter in consolidation by extruding aggregate material into form. The machine can pave several shapes curbstones and gutters by changing forms and the machine are widely used in concrete construction slip former field such as road, ditch and river dike etc.


Features:
The power ram is in reciprocating motion to extrude the aggregate materials and the machine could suit to process construction tasks with different size requirements;
Automatic control on steering and leveling by high quality sensors which makes the curbstones more smooth and neat;
Control panel could be turned and easy for operation; it can be protected by disassembled after using;
3 to 5 workers can use the machine to pave curb & gutter, and it is easily transported and with high performance-price ratio.


Curb & Gutter Extruder













TECHNICAL SPECIFICATION

Engine: 15HP US B&S Engine
Gross Weight: 960kg
Paving dimension: 1200mm*450mm (W*H)
Paving speed: 2.5m/min
