MC523

Introduction

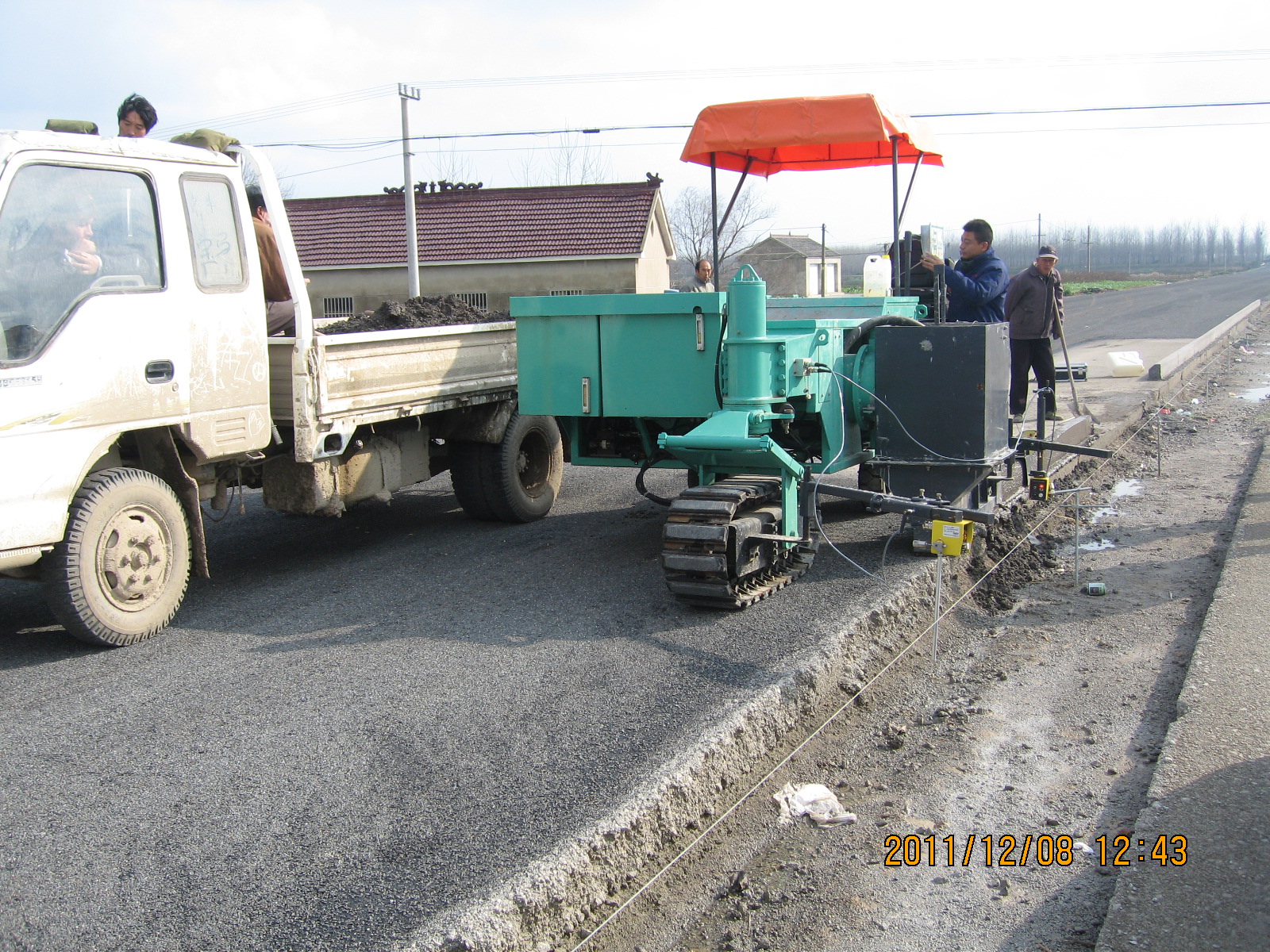

MC523 is newly developed based on Model MC522 and it is traveled by powerful crawler track and it is suitable for working at instable roadbed.



Features:

The control system is simple and reliable by using advanced CAN communication technology;
Automatic control on steering and leveling by high quality sensors which makes the curbstones more smooth and neat;
The LCD clearly displays total working situation of the whole machine;
The slipform paver is all hydraulic driven crawler tracking and with large grond terminal area.



Curb & Gutter Extruder













TECHNICAL SPECIFICATION

Engine: PERKINS 404D-22 ENGINE
Pump: SAUER Variable Pump KRR038
Transportation Dimension: 3550*1500*1360mm
Gross Weight: 3100kg
Paving Capacity: 1250*400mm (W*H)
Paving Speed: 0-12m/min
