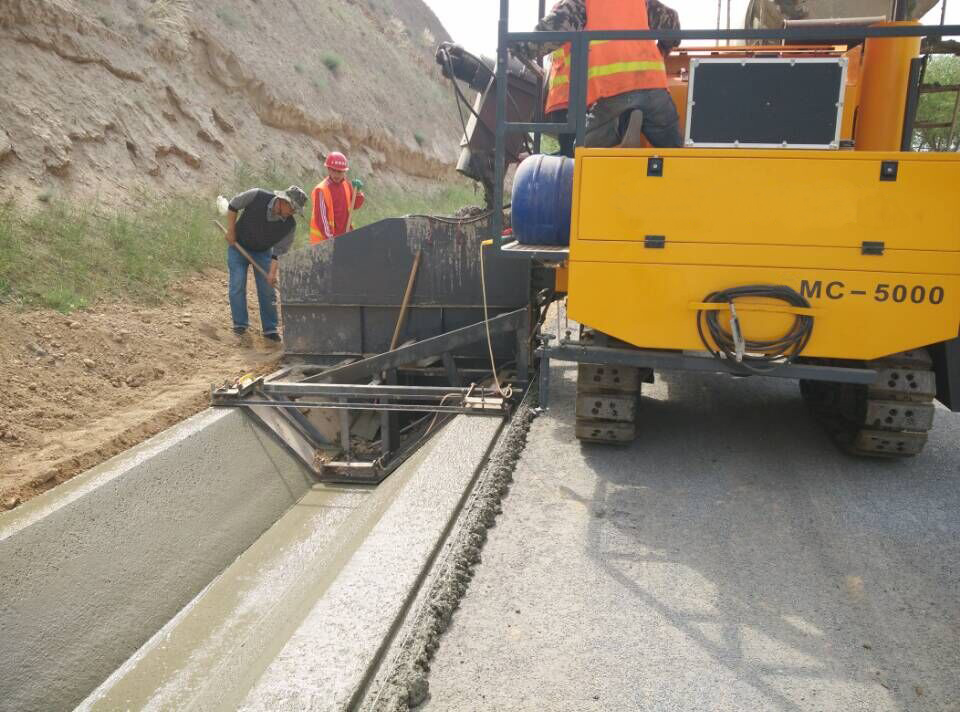

MC5000
Features
The control system is simple and reliable by using advanced CAN communication technology;
The LCD clearly displays total working situation of the whole machine;
The console is easily operation and convenient for turning and disassembling;
The emergency switches located in main control box can make the paver continue to work in case console is out of work
Hydraulic System
US SAUER Variable Pump has advantages of energy saving and reducing temperature in hydraulic system;
US HYDRAFORCE valves is compact in structure and easy for repairing;
The hydraulic vibrators are made by US WYCO Company with stable performance.
Other Working Mechanism
The contractor could reduce positioning time with hydraulically offset mold and the paver could be used on any working situations.
The feeding auger can rotate, tilt and shift to make its exit right towards mould chutes;
The feeding auger and belts can rotate which make the machine easy to transport;
Right rear track can laterally move, so it is convenient to load and unload in the truck
The control system is simple and reliable by using advanced CAN communication technology;
The LCD clearly displays total working situation of the whole machine;
The console is easily operation and convenient for turning and disassembling;
The emergency switches located in main control box can make the paver continue to work in case console is out of work
Hydraulic System
US SAUER Variable Pump has advantages of energy saving and reducing temperature in hydraulic system;
US HYDRAFORCE valves is compact in structure and easy for repairing;
The hydraulic vibrators are made by US WYCO Company with stable performance.
Other Working Mechanism
The contractor could reduce positioning time with hydraulically offset mold and the paver could be used on any working situations.
The feeding auger can rotate, tilt and shift to make its exit right towards mould chutes;
The feeding auger and belts can rotate which make the machine easy to transport;
Right rear track can laterally move, so it is convenient to load and unload in the truck
TECHNICAL SPECIFICATION
Speed: Travel 0-32m/min; Paving 0-15m/min
Paving Radius: 610mm
Paving Width: 1800mm
Paving Height: 1200mm
Transportation
Dimension (L*W*H): 5250*2700**2650mm
Weight: 11000kg
Engine
Cummins B3.3, 60KW@2200rpm
Fuel tank: 115L
Automatic Control System
Automatic control on steering and leveling by precise electronic-over-hydraulic sensors; CAN communication between sensor and controller;
Hydraulic System
Hydraulic pump: One electronic controlled closed loop main pump and three open loop load sensed US SAUER variable displacement pumps;
Hydraulic oil cooler: Extra capacity forced air oil cooler;
Filter: Including inlet-suction, outlet-high pressure and oil-return filters;
Hydraulic oil tank: 190L
Hydraulic Vibrators
Type: Hydraulic powered, motor in head, variable speed, independently controlled
Quantity: Four hydraulic circuits and two hydraulic vibrators with mounts;
Material Feeding Auger
Driven: Auger is directly driven by hydraulic motor, with reliable performance and high torque;
Dimension: 4500MM Length and 420mm diameter
Installation: It can be rotated and shifted by hydraulic cylinders and easily to receive concrete from the ready-mix truck.
Water System
Type: High-Pressure washer with 15Mpa water pressure
Capacity: 290L
Track System
Type: Three hydraulic powered track
Track dimension: 1630*300*610mm
Options
Two additional vibrator circuits
Additional vibrators and mounts
Belt conveyor
Hydraulic front-grade control and mount
Light Kit
Stringline Kit
Spare parts kit
