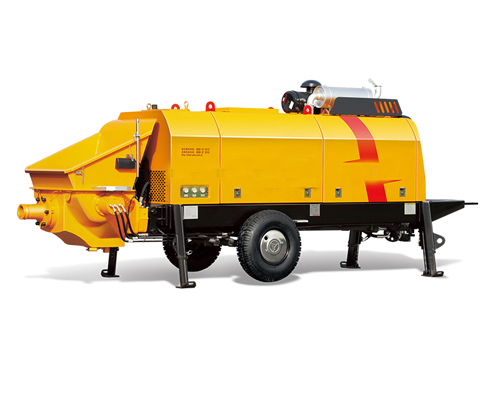

HBT80.21.220S
MAIN FEATURES
1. Main hydraulic pumps are Rexroth products.
2. The high and low pressure conversion of the outlet pressure can achieve lage discharge at low pressure and small discharge at high pressure.
3. The open loop o fthe hydraulic system is air cooled to keep the oil temperature under general conditions so as to ensure the stability of the system.
4. The reversing control is electric-hydraulic type.
5. The counterforce on specially designed "S" valve is received by hopper wall to assure the service life of goggle plate and cutting ring.
6. Main electric elements 'OMRON', 'Schneider' etc.
TECHNICAL SPECIFICATIONS
| Max. theory concrete output (m3/h) |
80/50 |
| Max. concrete pumping press (mpa) |
21/13 |
| Concrete cylinder diameter x stroke (mm) |
Φ200*1800 |
| Power (kw) |
110x2 |
| Rated speed (rpm) |
1400x2 |
| Hopper Capacity (L) |
800 |
| Filling height on supports (mm) |
1400 |
| Max. theory delivery distance (horizontal height) (m) |
2000 |
| Max. theory delivery distance (verticall height) (m) |
400 |
| Oil tank (L) |
850 |
| Overall dimensions (mm) |
6750*2350*2500 |
| Total weight (kg) |
8000 |
