HBT60.16.130RS

MAIN FEATURES

1. Main hydraulic pumps are Rexroth products.

2. The high and low pressure conversion of the outlet pressure can achieve lage discharge at low pressure and small discharge at high pressure.

3. The open loop o fthe hydraulic system is air cooled to keep the oil temperature under general conditions so as to ensure the stability of the system.

4. The reversing control is electric-hydraulic type.

5. The counterforce on specially designed "S" valve is received by hopper wall to assure the service life of goggle plate and cutting ring.

6. Main electric elements 'OMRON', 'Schneider' etc.

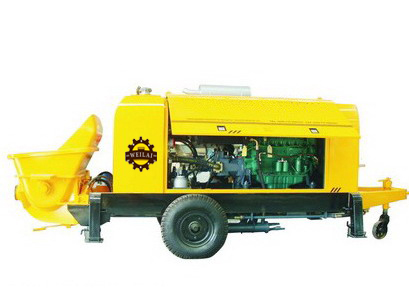

Trailer-Mounted Concrete Pump




TECHNICAL SPECIFICATIONS



Max. theory concrete output (m3/h)

67/44

Max. concrete pumping press (mpa)

16/11

Concrete cylinder diameter x stroke (mm)

Φ200*1600

Power (kw)

130

Rated speed (rpm)

1400

Hopper Capacity (L)

800

Filling height on supports (mm)

1400

Max. theory delivery distance (horizontal height) (m)

1500

Max. theory delivery distance (verticall height) (m)

350

Oil tank (L)

500

Overall dimensions (mm)

6400*2160*2800

Total weight (kg)

6400
