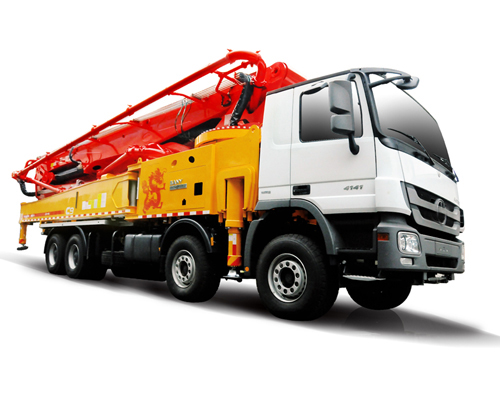

SY5361THB-42
MAIN FEATRUES
1. Automatic control of engine’s rotary speed for energy saving;
2. Open-type hydraulic system with the fully hydraulic steering, the electro hydraulic cushion, and the differential pressure response, which provides high reliability and slight steering shocking;
3. The pumping volume reaches 120m3/h, and the stepless control is adopted to meet various working conditions;
4. Automatic retraction of concrete piston, which facilitates the checking and the replacing;
5. The text display is adopted to show the operation parameters and the fault types. Also the multiple automatic protection system is equipped.
TECHNICAL SPECIFICATIONS
|
Work Condition |
|
|
Height above sea level |
≤1000m |
|
Environmental Temperature |
0°～40°C |
|
Parameters |
|
|
Dead Weight |
36.3×10^3kg |
|
Max. Load |
41×10^3kg |
|
Max. Speed |
≤80km/h |
|
Engine System |
|
|
Engine Type (cylinder/array/oil supply) |
V6turbo surcharge intercooling, automatic diesel engine |
|
Engine Model |
OM501LA |
|
Output Power |
290kW/1800rpm |
|
Discharge Capacity |
11.946 L |
|
Max. Torque/Speed |
1850Nm/1080rpm |
|
Tail Gas Discharge Standard |
EuroⅡ |
|
Capacity of Oil Tank |
400L(with oil-water separator) |
|
Chassis Parameters |
|
|
Chassis Producing Area/ manufacturer /model |
Germany/DaimlerChrysler automobile invest Ltd/actros4140 |
|
Chassis Drive Model |
8×4 |
|
Power take-off model |
|
|
Firstly wheelbase |
1700+4600 mm |
|
Secondly wheelbase |
1350 mm |
|
Front wheel |
2045 mm |
|
Back wheel |
1804 mm |
|
Tyre Type |
315/80R22.5 |
|
Rim Type |
9.00v×22.5t |
|
Arm support |
|
|
Type |
Four-section, folding, full hydraulic |
|
Diameter of delivery pipe |
DN125 |
|
Length of end hose |
3m |
|
Length of First section |
10250 mm |
|
Turning angle of First section |
92° |
|
Length of Second section |
9180 mm |
|
Turning angle of Second section |
180° |
|
Length of Third section |
9240 mm |
|
Turning angle of Third section |
180° |
|
Length of Fourth section |
9330 mm |
|
Turning angle of Fourth section |
270° |
|
Turning angle of revolving table |
365° |
|
Horizontal length of arm support |
38 m |
|
Vertical length of arm support |
41.75 m |
|
Lubricating mode |
Lubrication with hydraulic oil at lubrication center |
|
Oil tank capacity |
900 L |
|
Control |
Manual/remote |
|
Max. water pressure of water pump |
2 MPa |
|
Cooling method of hydraulic oil |
Wind cooling |
|
Pumping system |
|
|
Drive mode |
Hydraulic type |
|
Oil cylinder bore X stroke |
Φ140 ×2000 mm |
|
Delivery cylinder bore X stroke |
Φ230 ×2000 mm |
|
Type of valve |
S valve |
|
Theoretical displacement of concrete |
Low pressure 120 m3/h |
|
Theoretical displacement of concrete |
High pressure 67m3/h |
|
Theoretical pumping pressure |
High pressure 11.8 MPa |
|
Theoretical pumping pressure |
Low pressure 6.38 MPa |
|
Theoretical pumping frequency |
High pressure 13 times/per minute |
|
Theoretical pumping frequency |
Low pressure 23 times/per minute |
|
High pressure pumping |
|
|
Theoretical horizontal distance |
850m/125A pipe |
|
Theoretical vertical distance |
200m/125A pipe |
|
Hopper capacity |
0.9 m^3 |
|
Material feeding height |
1.35 m |
|
Oil pressure of the system |
32.5 MPa |
|
Slump |
14 cm~23 cm |
|
Max. aggregate size |
40 mm |
|
High-low pressure switch-over |
Automatic switch-over |
