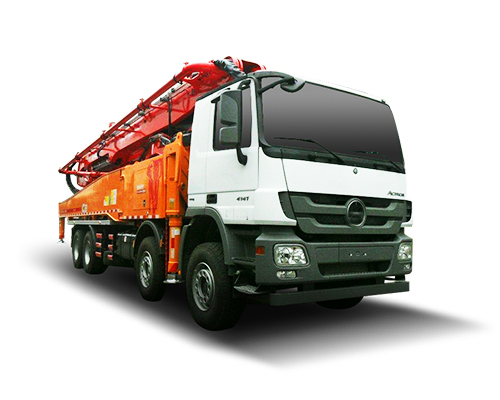

SY5400THB-45
MAIN FEATRUES
1. Automatic control of engine’s rotary speed for energy saving;
2. Open-type hydraulic system with the fully hydraulic steering, the electro hydraulic cushion, and the differential pressure response, which provides high reliability and slight steering shocking;
3. The pumping volume reaches 120m3/h, and the stepless control is adopted to meet various working conditions;
4. Automatic retraction of concrete piston, which facilitates the checking and the replacing;
5. The text display is adopted to show the operation parameters and the fault types. Also the multiple automatic protection system is equipped.
TECHNICAL SPECIFICATIONS
|
Working Conditions |
|
|
Height Above Sea Level |
≤1000m |
|
Environment Temperature |
0°～40°C |
|
Complete Vehicle Parameters |
|
|
Dead Weight |
40×10^3kg |
|
Max.Pay Mass |
41×10^3kg |
|
Max.Speed |
≤80km/h |
|
Overall Dimension：Length × Width × Height |
12590 mm×2500 mm×3990 mm |
|
Engine System |
|
|
Engine Type (Number of cylinder/Alignment/Fuel) |
V6turbo surcharge intercooling, automatic diesel engine |
|
Engine Model |
OM501LA |
|
Output Power |
290kW/1800rpm |
|
Discharge Capacity |
11.946 L |
|
Max.Torque/Rev |
1850Nm/1080rpm |
|
Tail Gas Discharge Standard |
EuroⅡ |
|
Capacity of Fuel Tank |
400L(with oil-water separator) |
|
Chassis Parameters |
|
|
Origin/Manufacturer/Model |
Germany/DaimlerChrysler automobile invest Ltd/actros4140 |
|
Chassis Drive Model |
8×4 |
|
Power Take-off Model |
|
|
First Wheel Base |
1700+4600 mm |
|
Second Wheel Base |
1350 mm |
|
Track Front |
2045 mm |
|
Track Rear |
1804 mm |
|
Tyre Type |
315/80R22.5 |
|
Rim Type |
9.00v×22.5t |
|
Arm support |
|
|
Type |
Five-section, folding, full hydraulic |
|
Diameter of delivery pipe |
DN125 |
|
Length of end hose |
3m |
|
Length of First section |
9080 mm |
|
Turning angle of First section |
92° |
|
Length of Second section |
8000 mm |
|
Turning angle of Second section |
180° |
|
Length of Third section |
8000 mm |
|
Turning angle of Third section |
180° |
|
Length of Fourth section |
7900 mm |
|
Turning angle of Fourth section |
180° |
|
Length of Fifth section |
7880 mm |
|
Turning angle of Fifth section |
254° |
|
Turning angle of revolving table |
365° |
|
Horizontal length of arm support |
40.83 m |
|
Vertical length of arm support |
44.75 m |
|
Lubricating mode |
Lubrication with hydraulic oil at lubrication center |
|
Oil tank capacity |
800 L |
|
Control |
Manual/remote |
|
Max. water pressure of water pump |
2 MPa |
|
Water tank capacity |
600 L |
|
Cooling method of hydraulic oil |
Wind cooling |
|
Pumping system |
|
|
Drive mode |
Hydraulic type |
|
Oil cylinder bore X stroke |
Φ160 ×2200 mm |
|
Delivery cylinder bore X stroke |
Φ260 ×2200 mm |
|
Type of valve |
S valve |
|
Theoretical displacement of concrete |
Low pressure 140 m3/h |
|
Theoretical displacement of concrete |
High pressure 100m3/h |
|
Theoretical pumping pressure |
High pressure 12 MPa |
|
Theoretical pumping pressure |
Low pressure 8.5 MPa |
|
Theoretical pumping frequency |
High pressure 13 times/per minute |
|
Theoretical pumping frequency |
Low pressure 21 times/per minute |
|
High pressure pumping |
|
|
Theoretical horizontal distance |
850m/125A pipe |
|
Theoretical vertical distance |
200m/125A pipe |
|
Hopper capacity |
0.9 m^3 |
|
Material feeding height |
1.4 m |
|
Oil pressure of the system |
32.5 MPa |
|
Slump |
14 cm~23 cm |
|
Max. aggregate size |
40 mm |
|
High-low pressure switch-over |
Automatic switch-over |
