SC200/200

MAIN FEATURES

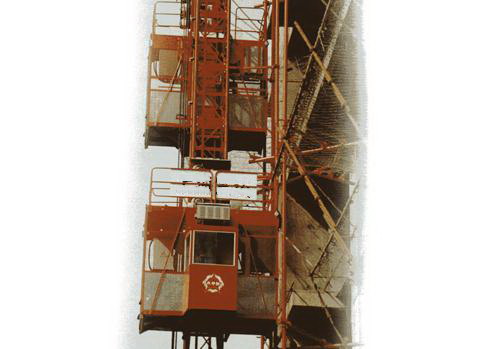

This type of hoist is opereated without counterweight, has two cages, each with one ton capacity. It’s technical standard, function and characteristics are in the same way as type of SCD200/200.

Construction Hoist




TECHNICAL SPECIFICATION



Model

SC200/200

Pay-load capacity(per cage)(kg)

2000

Erection load capacity(kg)

2000

Lifting speed(m/min)

40

Max Space of wall-tie(m)

9

Standard erection height(m)
(Max Height of specific order)

150(300)

Cage intermal size(m)

3.0*1.3*2.7

Size of mast secition(m)

0.8*0.8*1.508

Erection crane capacity(kg)

200

Power cont.duty(kw)

7.5*3

40%int.duty(kw)

10.5*3

Reted current(per cage)(A)

65

Starting current(per cage)v

280

Power consumption(KVA)

39

Type of Safety device

SAJ40-0.95

Weight of cage(kg)

1540

Weight of mast section(kg)

174

Weogjt of enclosure(kg)

1230

Counter Weight(kg)

-
