SCD200
MAIN FEATURES

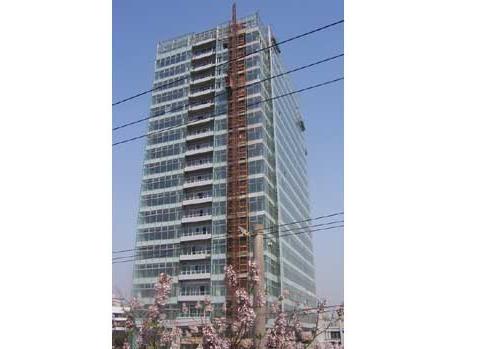

This type of construction hoist has two cages, each with two ton capacity. This type of construction hoists is operated with counterweight, Each cage has two sets of mechanism. The size of cross shape of mast section can be 0.8*0.8m and 0.65*0.65, height is 1.508m. In order to overcome the weight of cable itself and voltage drop when lifting height is over 100m, we use cable trolley. If the cage is liftedover the limit switch cam or lose the power suddenly, the cage can be pried up and down by hand.. This type hoist is adopted from overseas advanced techniques. It’s main technical properties have reached the advanced level of same products in the world which is the major new product of Grade Country.
TECHNICAL SPECIFICATION
|
Model |
SCD200 |
|
Pay-load capacity（per cage）（kg） |
2000 |
|
Erection load capacity（kg） |
1000 |
|
Lifting speed（m/min） |
40 |
|
Max Space of wall-tie（m） |
9 |
|
Standard erection height（m） |
150（300） |
|
Cage intermal size（m） |
3.0*1.3*2.7 |
|
Size of mast secition（m） |
0.65*0.65*1.508 |
|
Erection crane capacity（kg） |
200 |
|
Power cont.duty（kw） |
7.5*2 |
|
40%int.duty（kw） |
10.5*2 |
|
Reted current（per cage）（A） |
45 |
|
Starting current（per cage）（A） |
200 |
|
Power consumption（KVA） |
26 |
|
Type of Safety device |
SAJ30-0.95 |
|
Weight of cage（kg） |
1420 |
|
Weight of mast section（kg） |
172 |
|
Weogjt of enclosure（kg） |
1230 |
|
Counter Weight（kg） |
1100 |
