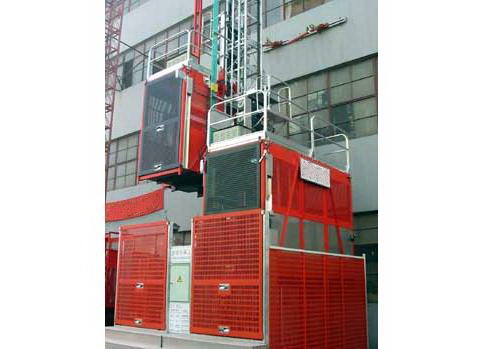

SCD200/200V

MAIN FEATURES

This type of hoist is operated with counterweight, has double cage, each with two ton capacity. The inverter is selected from high quality products of Japan “YASKAWA Eelectrical Corporation” The features of this type hoist is: 1. High lifting speed, the medium is 0~60m/min, the high speed is 0~90. 2. The process of starding or stopping of the cage is very steady and there is no impact force applying on the mechanism. 3. Starting current is less than normal current. 4. Because ther is no impact force during start process, so it greatly reduces the wearness of the mechanism including pinion and rack. 5. Effect energy-saving obviously.

Construction Hoist






TECHNICAL SPECIFICATION



Model

SCD200/200V
SCD200/200VA

Pay-load capacity(per cage)(kg)

2000

Erection load capacity(kg)

800

Lifting speed(m/min)

0-90
0-60

Max Space of wall-tie(m)

9

Standard erection height(m)
(Max Height of specific order)

150
(450)
(300)

Cage intermal size(m)

3.2*1.5*2.5
3.0*1.3*2.5

Size of mast secition(m)

0.8*0.8*1.508

Erection crane capacity(kg)

220
200

Power cont.duty(kw)

-

40%int.duty(kw)

18.5*3
14.5*2

Reted current(per cage)(A)

120
60

Starting current(per cage)(A)

0-120
0-60

Power consumption(KVA)

80
40

Type of Safety device

SAJ40-1.95
SAJ40-1.35

Weight of cage(kg)

2300
1600

Weight of mast section(kg)

207
190
