SCD280/280
MAIN FEATURES

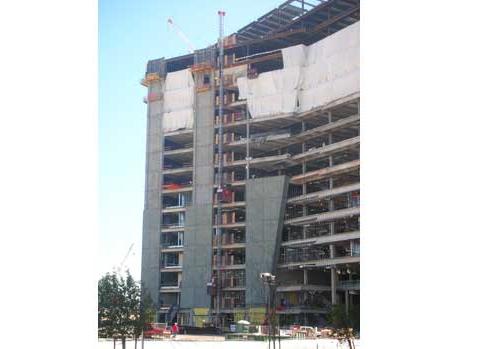

This type of construction hoist has two cages, each with 2.8 ton capacity.
This type of construction hoists is operated with counterweight, Each cage has two sets of mechanism.
The size of cross shape of mast section can be 0.8*0.8m and 0.65*0.65, height is 1.508m.
In order to overcome the weight of cable itself and voltage drop when lifting height is over 100m, we use cable trolley.
If the cage is lifted over the limit switch cam or lose the power suddenly, the cage can be pried up and down by hand..
This type hoist is adopted from overseas advanced techniques. It’s main technical properties have reached the advanced level of same products in the world which is the major new product of Grade Country.
TECHNICAL SPECIFICATION
|
Model |
SCD280/280 |
|
rated loading capacity（kg） |
2800 |
|
erection load capacity（kg） |
700 |
|
lifting speed（m/min） |
38 |
|
Max. Space of wall tie（m） |
9 |
|
rated installation speed（m/min） |
38 |
|
Maximum hoisting height（m） |
150 |
|
Cage internal size (L*W*H) m |
3.2~3.8*1.5*2.5 |
|
size of mast section (L*W*H) m |
0.65*0.65*1.508 |
|
quantity for each cage |
2 |
|
rated power S3，25%（kw） |
SEW14.5*2 |
|
each cage starting current（A） |
0~60 |
|
each cage rated current（A） |
60 |
|
each cage power（KVA） |
44 |
|
weight of cage（kg） |
2300 |
|
weight of mast section（kg） |
219 |
|
weight of counterweight（kg） |
1900~2100 |
