QY16B.5

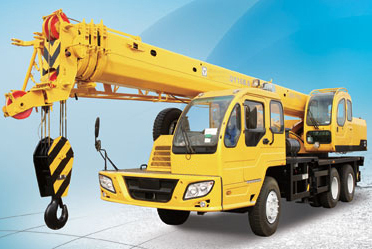

QY16B.5 Truck Crane uses self-made truck crane chassis. A gravity-lowering device fitted in the winch improves working efficiency. Constant closed external meshing brake makes operation safe and reliable.
TECHNICAL SPECIFICATIONS
| Dimension |
Unit |
QY16B.5 |
|
Overall length |
mm |
12110 |
|
Overall width |
mm |
2500 |
|
Overall height |
mm |
3250 |
|
Weight |
|
|
|
Total weight in travel |
kg |
24000 |
|
Front axle load |
kg |
6400 |
|
Rear axle load |
kg |
17600 |
|
Power |
|
|
|
Engine model |
|
WD415.21/ SC8DK230Q3 |
|
Engine rated power |
kW/(r/min) |
155/2200、170/2200 |
|
Engine rated torque |
N.m/(r/min) |
820/1400 830/1400 |
|
Travel |
|
|
|
Max. travel speed |
km/h |
75 |
|
Min. turning diameter |
mm |
20000 |
|
Min. ground clearance |
mm |
270 |
|
Approach angle |
° |
21 |
|
Departure angle |
° |
10 |
|
Max. grade ability |
% |
24 |
|
Fuel consumption for 100km |
L |
≤35 |
|
Main performance |
|
|
|
Max. rated total lifting capacity |
t |
16 |
|
Min. rated working radius |
m |
3 |
|
Turning radius at turntable tail |
m |
3.14 |
|
Max. lifting torque |
KN.m |
720 |
|
Base boom |
m |
9.9 |
|
Fully extended boom |
m |
31.1 |
|
Fully extended boom＋jib |
m |
39.4 |
|
Longitudinal outrigger span |
m |
4.6 |
|
Lateral outrigger span |
m |
5.4 |
|
Working speed |
|
|
|
Boom luffing time |
s |
60 |
|
Boom full extension time |
s |
95 |
|
Max. swing speed |
r/min |
2.5 |
|
Main winch single-pump/dual-pump converging (single rope) |
m/min |
54/100 |
|
Aux. winch full load/no load (single rope) |
m/min |
110 |
