SQ2SK1Q
MAIN FEATURES

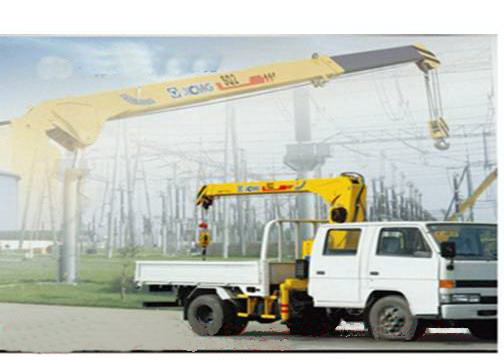

With the advantages of convenient operation, high efficiency, safety and reliability, the truck mounted crane features high speed, and strong gradeability.
TECHNICAL SPECIFICATIONS
|
Max. lift Capacity (kg) |
2100 KG |
|
Max. lift moment |
4.2 TM |
|
Power Recommended |
9 Kw |
|
Max Pressure of Hydraulic system |
20 L/Min |
|
Rated pressure of hydraulic system |
16 MPa |
|
Oil tank capacity |
25 L |
|
Slewing Angle |
All Rotation |
|
Crane Weight |
650 KG |
|
Installation space |
850 MM |
