SQ4SK3Q
MAIN FEATURES

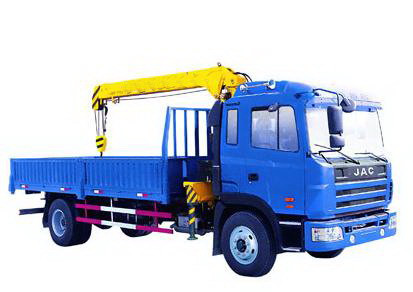

With the advantages of convenient operation, high efficiency, safety and reliability, the truck mounted crane features high speed, and strong gradeability.
TECHNICAL SPECIFICATIONS
|
|
|||||||
|
Model |
SQ4SK3Q |
Unit |
|||||
|
Max Lifting Capacity |
4000 |
kg |
|||||
|
Max Lifting Moment |
10 |
T.M |
|||||
|
Recommend Power |
16 |
kw |
|||||
|
Max Oil Flow of Hydraulic System |
25 |
L/min |
|||||
|
Max Pressure of Hydraulic System |
20 |
MPa |
|||||
|
Oil Tank Capacity |
60 |
L |
|||||
|
Rotation Angle |
All Rotation |
||||||
|
Crane Weight |
1350 |
kg |
|||||
|
Installation Space |
850 |
mm |
|||||
|
Choice of Chassis |
DFL1120B DONGFENG；EQ1081GJ12D5 DONGFENG；HFC1132KR1K3 JAC；LZ1120LAPT DONGFENG；EQ1092FJ1 DONGFENG；EQ1092FJ DONGFENG EQ1092F3GJ1 DONGFENG；EQ5121GFJ DONGFENG ； |
||||||
|
SQ4SK3Q Working Radius (m) |
2.5 |
3.42 |
5.42 |
7.42 |
9.42 |
||
|
Lift Capacity (kg) |
4000 |
2600 |
1600 |
900 |
400 |
||
