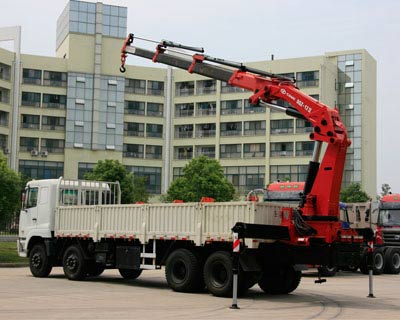

SQ5ZK3Q
MAIN FEATURES
With the advantages of convenient operation, high efficiency, safety and reliability, the truck mounted crane features high speed, and strong gradeability.
TECHNICAL SPECIFICATIONS
|
Max. lift Capacity (kg) |
5000 KG |
|
Max. lift moment |
10.5 TM |
|
Power Recommended |
18 Kw |
|
Max Pressure of Hydraulic system |
25 L/Min |
|
Rated pressure of hydraulic system |
28 MPa |
|
Oil tank capacity |
90 L |
|
Slewing Angle |
All Rotation |
|
Crane Weight |
2117 KG |
|
Installation space |
1050 MM |
