SQ12ZK3Q
MAIN FEATURES

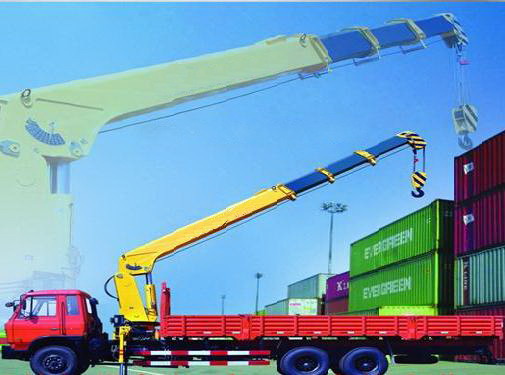

With the advantages of convenient operation, high efficiency, safety and reliability, the truck mounted crane features high speed, and strong gradeability.
TECHNICAL SPECIFICATIONS
|
Max. lift Capacity (kg) |
12000 KG |
|
Max. lift moment |
30 TM |
|
Power Recommended |
32 Kw |
|
Max Pressure of Hydraulic system |
55 L/Min |
|
Rated pressure of hydraulic system |
30 MPa |
|
Oil tank capacity |
220 L |
|
Slewing Angle |
All Rotation |
|
Crane Weight |
4130 KG |
|
Installation space |
1400 MM |
