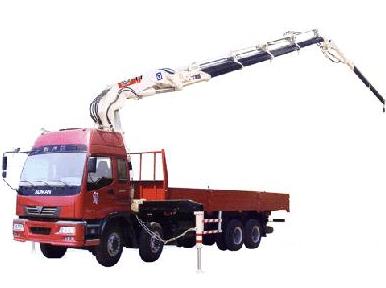

SQ16SK5Q
MAIN FEATURES
With the advantages of convenient operation, high efficiency, safety and reliability, the truck mounted crane features high speed, and strong gradeability.
TECHNICAL SPECIFICATIONS
|
Max. lift Capacity (kg) |
16000 KG |
|
Max. lift moment |
40 TM |
|
Power Recommended |
36 Kw |
|
Max Pressure of Hydraulic system |
63 L/Min |
|
Rated pressure of hydraulic system |
28 MPa |
|
Oil tank capacity |
360 L |
|
Slewing Angle |
All Rotation |
|
Crane Weight |
6200 KG |
|
Installation space |
140 MM |
