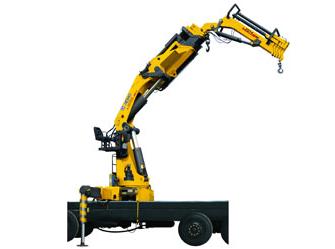

SQ25ZK6Q
MAIN FEATURES
With the advantages of convenient operation, high efficiency, safety and reliability, the truck mounted crane features high speed, and strong gradeability.
TECHNICAL SPECIFICATIONS
|
Max. lift Capacity (kg) |
25000 KG |
|
Max. lift moment |
62.5 TM |
|
Power Recommended |
50 Kw |
|
Max Pressure of Hydraulic system |
80 L/Min |
|
Rated pressure of hydraulic system |
31.5 MPa |
|
Oil tank capacity |
300 L |
|
Slewing Angle |
370° |
|
Crane Weight |
7945 KG |
|
Installation space |
3000 MM |
