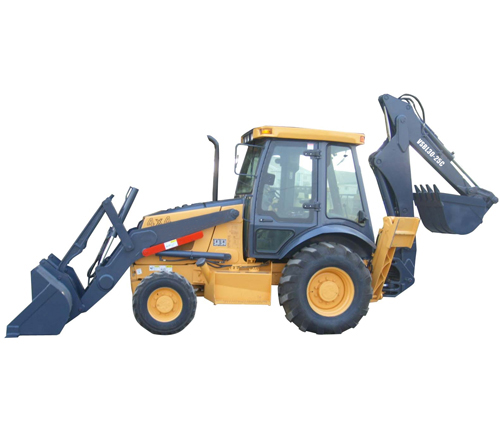

BL20

1.         Equipped with Cummins USA engine.
2.         Imported T/C & T/M, 4 forward & 4 reverse synchromesh mechanical shift transmission.
3.         CARRARO (Italy) wet type rear axle with multi-disc brake& CARRARO (Italy) front axle.
4.         Multi-purpose 4 in 1 bucket has extended application range including loading, scraping,
5.         shoving, blade, clamping, paving and lifting.
6.         The bucket is controlled through electrical-hydraulic mode.
7.         Adopted pilot valve controlling loader and backhoe valve, easy and flexible operation.
8.         Extendible dipper upgrades productivity by reducing the number of travel operation.
9.         The mechanical quick coupler attachment is available.
10.     Hyundai oil cylinder, Parker pipe, Eaton redirector, imported valve and hydraulic locks.
11.     New-type ROPS cab with Bergstrom A/C more space, increases comfort and visibility.













Item

BL20 (sideshift type)

Engine

CUMMINS USA

Model

4BT4.5-C99

Rated Power (kW)

74

Speed (r/min)

2200

Forward Speed 1-4 (km/h)

5.8-40.2

Reverse Speed 1-4 (km/h)

7-48.6

Min. Ground Clearance (mm)

355 (2WD)/275 (4WD)

Gradeability (%)

30

Min. Steering Radius (Outside of Bucket) (mm)

5280 (2WD)/5670 (4WD)

Min. Steering Radius (Center of Front Wheel) (mm)

3795 (2WD)/4300 (4WD)

Rated Bucket Capacity (m3)

1

Max. Dumping Clearance (mm)

2611

Max. Dumping Reach (mm)

726

Max. Breakout Force (kN)

>40

Rated Hoe Bucket Capacity (m3)

0.2

Max. Digging Depth (mm)

4365

Max. Digging Force (kN)

>56.6+10％

Max. Digging Radius (mm)

5390

Max. dumping height (mm)

3510

Fore Tyre (2WD)

12-16.5NHS-10PR

Fore Tyre (4WD)

12-16.5NHS-10PR

Rear Tyre

19.5L-24R4-12PR

Fuel Tank (L)

151

Crank Case (L)

11

Transmission (L)

18.5

Rear Axle (L)

17

Fore Axle (L)

7.6

Hydraulic System (L)

110

Overall Dimension (mm)

5840x2313x3548
