D100

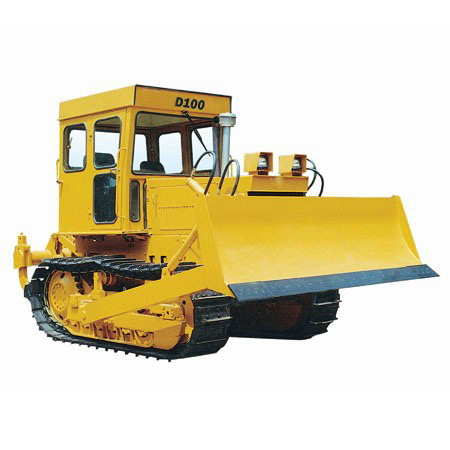

D100 crawler tractor is a small size bulldozer.The traction mechanism is of the semi-rigid suspension car type. The bulldozer adopts the two-plate dry primary clutch, which is easy to maintain. The steering is hydraulically supported and the bulldozer is hydraulically operated.

*Engine: Choose the pressure rising engine produced with British Ricardo joint-venture technology, lower oil   consumption, stronger torsion.
*Master clutch: Choosedry, double piece and constant combining clutch, stronger torsion, simple and reliable.
*Gearbox: Choose 4F+2R mechanical gearbox, simply operating, conveniently maintaining, reliably using.
*Turning clutch: Choosedry and multi-piece turning clutch, manually operating with hydraulic pressure, easily maintaining, Iightly and conveniently operating.
*Transmission: Choose two classes, straight teeth, big modulus gear transmission, stronger carrying capacity, and higher reliability.
.
Bulldozer



*Work device: Many kinds of work device are chosen for users according to requirements.
*Operating environment: Choose fully completed close，low noise cab，100G-Ⅱeffectively reducing ear noise.
*Electric system is characterized by electronic monitor, making real-time monitor for complete machine oassure normal operation;
*Reliably using, conveniently maintaining, spare parts are easily purchased.









Model

　

D100

Total weight

kg

10000

Max towing force

kN

81

Engine model

　

LR6105T13A

Engine rated power

kw/hp

73.5/100

Engine rated speed

r/min

2300

Fuel Consumption of the engine

g/kw.h

≤238

Engine max torque

N.m

400

Traveling speed

　

　

Forward I-IV gears

km/h

2.6~10.4

Reverse I-II gears

km/h

3.7～6.7

Max slope angle

o

≥30

Caterpillar track board width

mm

400

Land pressure

Kpa

54.4

Overall length

mm

4690

Overall width

mm

2935

Overall height

mm

2982

Blade width

mm

2935

Blade height

mm

960

Blade max lifting height

mm

830

Blade max digging depth

mm

350

Cutting angle(adjustable)

o

55

Twing equipment/Scar fier (Optional)

　

fixed/ 3 teeth

Note: Materials and specifications are subject to change without notice.
