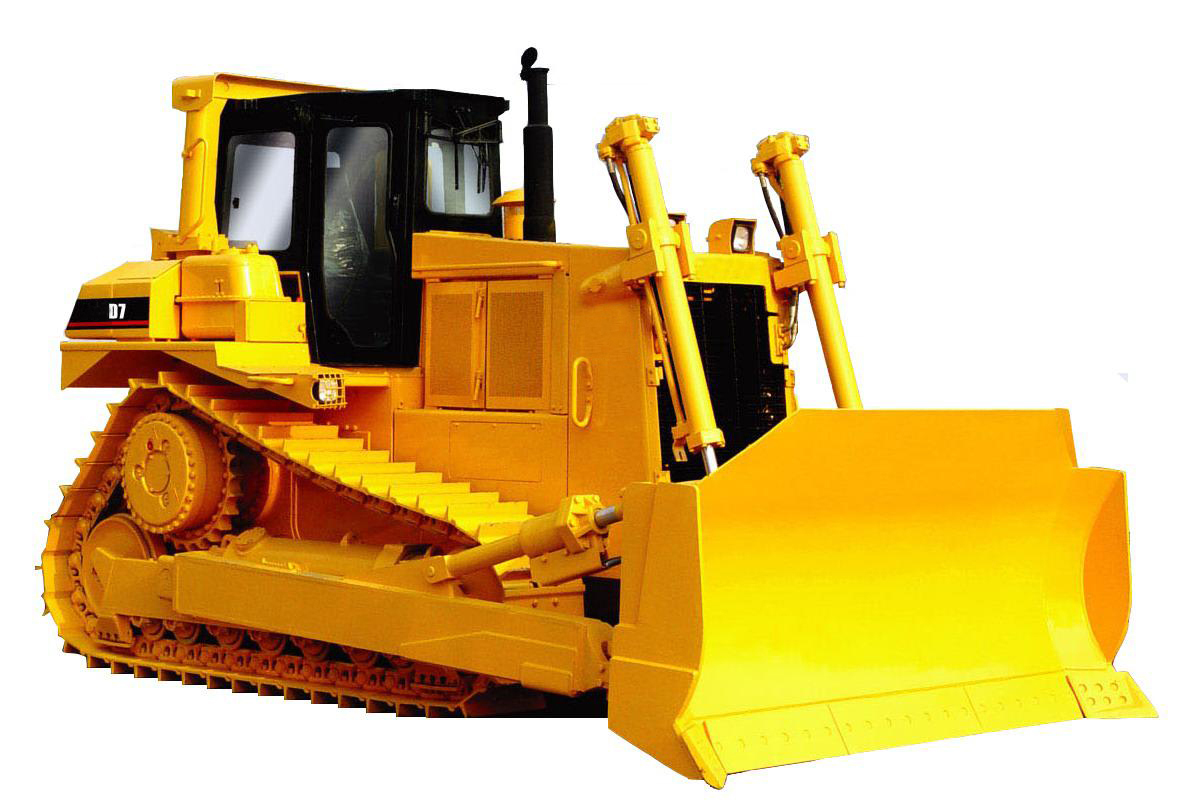

D7
|
Engine |
||
|
Type 1 |
Cummins NTA855-C280S10 |
|
|
Rated revolution（RPM） |
2100 |
|
|
Flywheel power（KW） |
169 |
|
|
Max.torque(N.M/rpm) |
1097/1500 |
|
|
Rated fuel consumption(g/kw.h) |
≤235 |
|
|
Type 2 (Optional) |
SDEC C6121ZLG83B |
|
|
Driving system |
||
|
Torque converter |
Torque converter is power seperating hydraulic-mechanic type. |
|
|
Transmission |
Plantetary, power shift transmission with three speeds forward and three speeds reverse. Speed and direction can be quickly shifted |
|
|
Steering clutch |
The steering clutch is hydraulic pressed, non-constant engaged clutch. |
|
|
Steering brake |
The braking clutch is hydraulic pressed by spring,seperated hydraulic, constant meshed type. |
|
|
Final drive |
The final drive is two-stage planetary reduction gear mechanism, splash lubrication. |
|
|
Undercarriage system |
||
|
Type |
The track is triangle shape. The sprocket is elevated. |
|
|
Number of track rollers(each side) |
7 |
|
|
Pitch(mm) |
216 |
|
|
Width of shoe(mm) |
560 |
|
|
Gear |
||
|
|
1st , 2nd, 3rd |
|
|
Forward |
km/h |
0-3.9 ,0-6.5, 0-10.9 |
|
Backward |
km/h |
0-4.8, 0-8.2 , 0-13.2 |
|
Implement hydraulic system |
||
|
Max.system pressure(MPA) |
18.6 |
|
|
Pump type |
high pressure gears pump |
|
|
system output |
194 |
|
|
Dozer |
||
|
Type |
tilt |
|
|
Operation weight（kg) |
23800 |
|
|
Ground pressure(kpa) |
71.9 |
|
|
Track gauge(mm) |
1980 |
|
|
Min.ground clearance(mm) |
404 |
|
|
Gradient |
30。/25。 |
|
|
Dozing capacity(m3) |
8.4 |
|
|
Blade width(mm) |
3500 |
|
|
Max.digging depth(mm) |
498 |
|
|
with ripper (mm) |
7616*3500*3402 |
|
|
without ripper (mm) |
5677*3500*3402 |
|
|
Note: Materials and specifications are subject to change without notice. |
||
