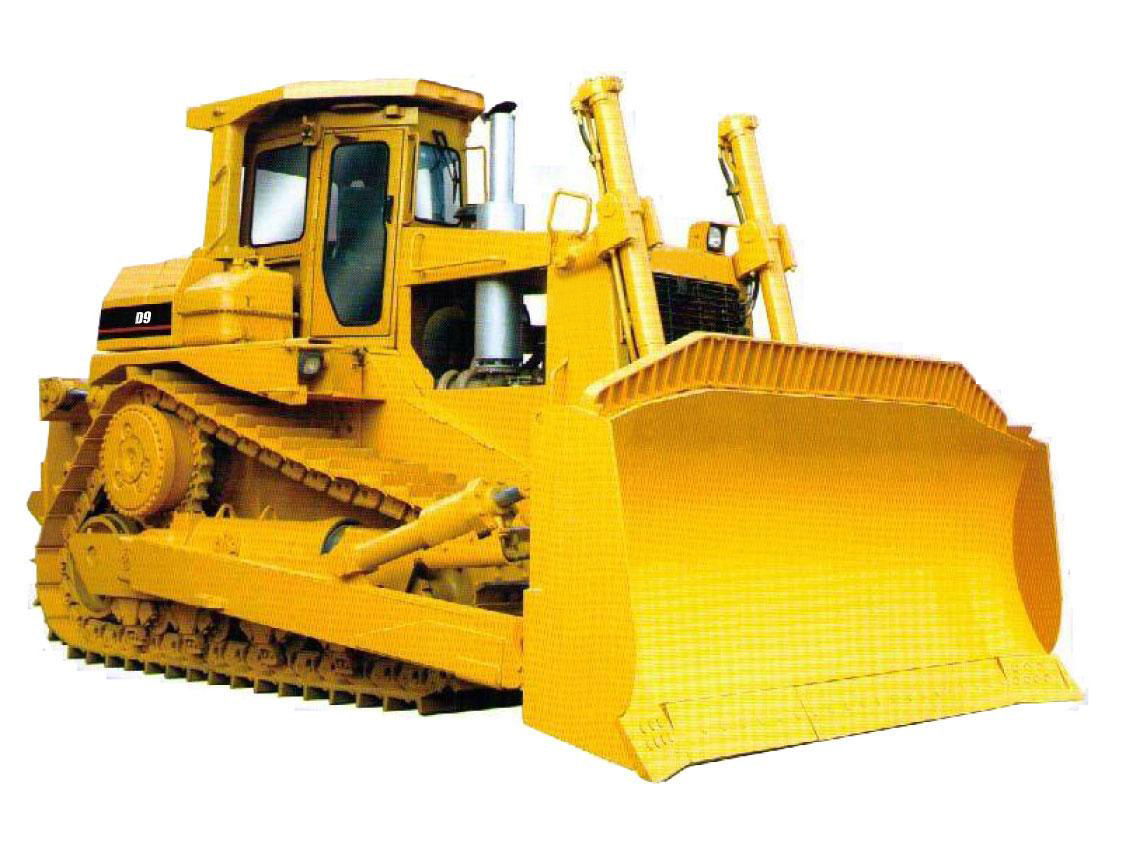

D9
|
Engine |
||
|
Type 1 |
Cummins KTA19-C525 |
|
|
Rated revolution（RPM） |
1800 |
|
|
Flywheel power（KW/HP） |
316/430 |
|
|
Torque storage coefficeient |
18% |
|
|
Type 2(Optional) |
Cummins USA QSX15 (Optional) |
|
|
Rated revolution（RPM） |
1800 |
|
|
Flywheel power（KW/HP） |
316/430 |
|
|
Torque storage coefficeient |
18% |
|
|
Driving system |
||
|
Torque converter |
Torque converter is power seperating hydraulic-mechanic type. |
|
|
Transmission |
Plantetary, power shift transmission with three speeds forward and three speeds reverse. Speed |
|
|
Steering clutch |
The steering clutch is hydraulic pressed, usually seperated clutch. |
|
|
Steering brake |
The braking clutch is pressed by spring,seperated hydraulic, constant meshed type. |
|
|
Final drive |
The final drive is two-stage planetary reduction gear mechanism, splash lubrication. |
|
|
Undercarriage system |
||
|
Type |
The track is triangle shape. The sprocket is elevated elastic suspended. |
|
|
Number of track rollers(each side) |
8 |
|
|
Pitch(mm) |
240 |
|
|
Width of shoe(mm) |
610 |
|
|
Gear |
||
|
|
1st, 2nd ,3rd |
|
|
Forward |
km/h |
0-3.9 0-6.7 0-12.2 |
|
Backward |
km/h |
0-4.8 0-8.5 0-15.1 |
|
Implement hydraulic system |
||
|
Max.system pressure(MPA) |
18.3 |
|
|
Pump type |
double vane pump |
|
|
system output |
300 |
|
|
Dozer |
||
|
Type |
tilt |
|
|
Operation weight（kg) |
44588 |
|
|
with ripper |
48888 |
|
|
Ground pressure(kpa) |
102 |
|
|
with ripper |
112 |
|
|
Track gauge(mm) |
2250 |
|
|
Min.ground clearance(mm) |
517 |
|
|
Gradient |
30。/25。 |
|
|
Dozing capacity(m3) |
13.5 |
|
|
Blade width(mm) |
4314 |
|
|
Max.digging depth(mm) |
614 |
|
|
without ripper |
6592*4314*3970 |
|
|
with ripper |
8478*4314*3970 |
|
|
Note: Materials and specifications are subject to change without notice. |
||
