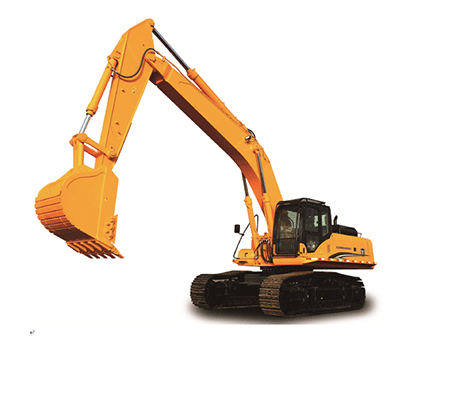

WLE330
|
SPECIFICATION |
||
|
Operating weight of total machine（kg） |
33400 |
|
|
Bucket capacity（m³） |
1.45 |
|
|
Width of track shoes（mm） |
600 |
|
|
ENGINE |
||
|
Model |
C8.3 (6CTAA) CUMMINS |
|
|
Type |
6 Cylinders,Turbocharged direct injection, aftercooler |
|
|
Rated l power (kW) |
168kw2000rpm |
|
|
PERFORMANCE |
||
|
Ground pressure (Kpa) |
68.5 |
|
|
Swing speed（r/min） |
11 |
|
|
Traveling speed high/low（Km/h） |
4.5/3.1 |
|
|
Grade ability |
70% |
|
|
Bucket digging force（KN） |
185 |
|
|
Stick digging force（KN） |
160 |
|
|
Ambient Temperature (℃) |
-35℃ ~ +45℃ |
|
|
Height above Sea Level (m) |
≤2500 |
|
|
Operating Environment |
Adaptable to desert, and dusty working conditions. |
|
|
HYDRAULIC SYSTEM |
||
|
Type of hydraulic pump |
2×Variable flow piston pump + 1×Gear pump |
|
|
Method of power adjusted |
Gross power adjustment + variable power + negative flow control |
|
|
Max flow |
2x271L/min |
|
|
Main safety valve adjusted pressure |
31.4/33.3MPA |
|
|
Travel plunger motor |
2×Variable flow axial piston motor |
|
|
Motor for swing |
1×Fixed flow axial piston motor |
|
|
WORKING RANGE |
||
|
Max. working radius（mm） |
11220 |
|
|
Max. digging depth（mm） |
7490 |
|
|
Max. vertical digging depth（mm） |
6520 |
|
|
Max. digging height（mm） |
10390 |
|
|
Max. loading height（mm） |
7320 |
|
|
Min. swing radius（mm） |
4295 |
|
|
OVERALL DIMENSIONS |
||
|
Length of track on ground (mm) |
3730 |
|
|
Length of track (mm) |
4660 |
|
|
Ground clearance of counter weight (mm) |
1180 |
|
|
Tail swing radius (mm) |
3430 |
|
|
Total length (mm) |
11250 |
|
|
Total height（Boom）(mm) |
3430 |
|
|
Min. ground clearance (mm) |
540 |
|
|
Track gauge (mm) |
2590 |
|
|
Total width (mm) |
3190 |
|
|
Height of track shoes (mm) |
1040 |
|
|
Total height（Cab）(mm) |
3135 |
|
|
Top width (mm) |
3000 |
|
|
Width of track shoes (mm) |
600 |
|
