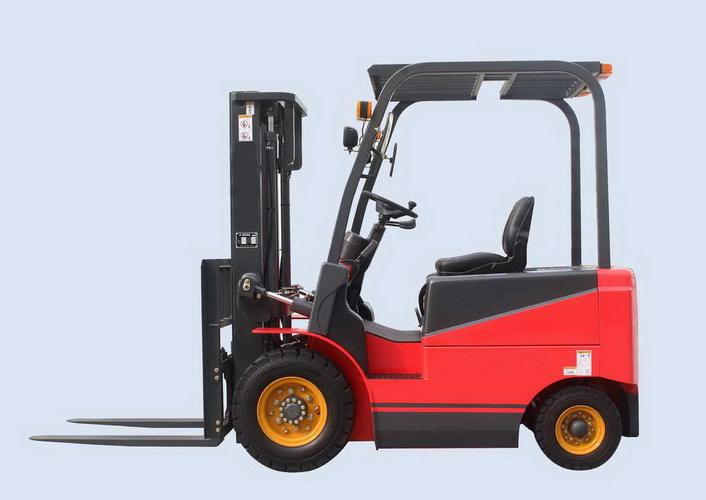

CPD10-25
MAIN FEATURES
1. Enhanced comfort through innovative design.
2. Hydraulic transmission and mechanical transmission types are all available.
3. Flexible steering and small turning radius, with full Hydraulic Steering System.
4. We use scientific ergonomic method to design Forklift truck. The operation space has been efficiently enlarged. The rough feeling of the driver has been reduced to the lowest extends.
5. A variety of domestic and imported engines for you to choose. The emission meets EC and EPA new regulation.
6. Specially designed container door frame can enter the container for operation. This series forklifts can be equipped with two, or three full free lift mast, and various attachments, according to user’s demand.
7. Enclose cabin is made of assembling plate on overhead guard, high strength overhead is design to ensure the safety.
8. Operator presence sensing system, the system will cut off the driving force to prevent accidents, when the driver leave the seat during operation.
TECHNICAL SPECIFICATION
|
Technical parameters |
|||||
|
Model |
|
CPD10 |
CPD15 |
CPD20 |
CPD25 |
|
Load capacity |
kg |
1000 |
1500 |
2000 |
2500 |
|
Load center |
mm |
500 |
500 |
500 |
500 |
|
Max lifting height |
mm |
3000 |
3000 |
3000 |
3000 |
|
Tilting angles (forward-backward) |
|
6°/12° |
6°/12° |
6°/12° |
6°/12° |
|
Lifting speeds(with load/without load)mm |
mm/s |
440/320 |
480/300 |
430/280 |
420/260 |
|
Free lift |
mm |
135 |
135 |
160 |
160 |
|
Max Driving seeds(with load/without load ) |
km/h |
13.5 |
13 |
11.5 |
11 |
|
Min turning radius |
mm |
1850 |
1885 |
2320 |
2320 |
|
Slope-climbing gradient |
|
15% |
15% |
10% |
10% |
|
Length |
mm |
2915 |
2950 |
3335 |
3485 |
|
Width |
mm |
1086 |
1086 |
1180 |
1180 |
|
Height |
mm |
2100 |
2100 |
2180 |
2180 |
|
Mast height fork lowered |
mm |
1990 |
1990 |
1995 |
1995 |
|
Overhead height fork raised |
mm |
4030 |
4030 |
3900 |
4030 |
|
Fork size L*W*T |
mm |
920*100*40 |
920*100*40 |
920*122*40 |
1070*122*40 |
|
Max lowering speeds |
mm/s |
Without load ≥300 |
Without load ≥300 |
Without load ≥300 |
Without load ≥300 |
|
|
|
|
|
||
|
With load ≤600 |
With load ≤600 |
With load ≤600 |
With load ≤600 |
||
|
Fork overhang |
mm |
435 |
435 |
490 |
490 |
|
Wheel base |
mm |
1250 |
1250 |
1500 |
1500 |
|
Rear overhang |
mm |
335 |
370 |
395 |
395 |
|
Lateral fork adjustment |
mm |
200-970 |
200-970 |
245-1038 |
245-1038 |
|
Under –clearance |
mm |
105 |
105 |
110 |
110 |
|
Tread front |
mm |
890 |
890 |
980 |
980 |
|
Tread rear |
mm |
920 |
920 |
950 |
950 |
|
Battery voltage |
v |
48 |
48 |
48 |
48 |
|
Battery capacity |
Ah |
400 |
400 |
620 |
700 |
|
Traveling motor |
Kw |
5 |
5 |
8 |
8 |
|
Lifting motor |
Kw |
7.5 |
7.5 |
8.6 |
10 |
|
Steering motor |
Kw |
0.8 |
0.8 |
|
|
|
Tire front |
|
6.5-10-10PR |
6.5-10-10PR |
7.00-12-12PR |
7.00-12-12PR |
|
Tire rear |
|
5.00-8-10PR |
5.00-8-10PR |
18X7-8-14PR |
18X7-8-14PR |
|
Total weight |
kg |
2650 |
2950 |
4150 |
4420 |
|
Electronic controllers |
|
Ge/GURTIS/ZAPI |
Ge/GURTIS/ZAPI |
Ge/CURTIS/ZAPI |
Ge/CURTIS/ZAPI |
