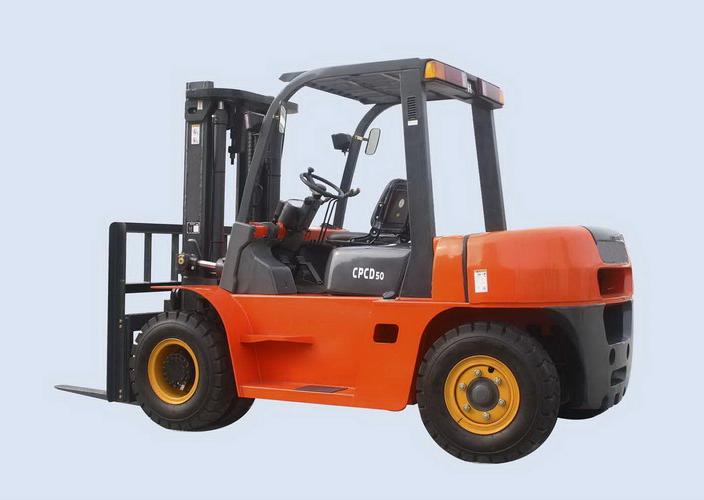

CPCD50-100
MAIN FEATURES
1. Enhanced comfort through innovative design.
2. Hydraulic transmission and mechanical transmission types are all available.
3. Flexible steering and small turning radius, with full Hydraulic Steering System.
4. We use scientific ergonomic method to design Forklift truck. The operation space has been efficiently enlarged. The rough feeling of the driver has been reduced to the lowest extends.
5. A variety of domestic and imported engines for you to choose. The emission meets EC and EPA new regulation.
6. Specially designed container door frame can enter the container for operation. This series forklifts can be equipped with two, or three full free lift mast, and various attachments, according to user’s demand.
7. Enclose cabin is made of assembling plate on overhead guard, high strength overhead is design to ensure the safety.
8. Operator presence sensing system, the system will cut off the driving force to prevent accidents, when the driver leave the seat during operation.
TECHNICAL SPECIFICATION
|
Features |
Model |
Power shift T/M |
CPCD50 |
CPCD60 |
CPCD70 |
CPCD80 |
CPCD100 |
|
|
Load capacity |
kg |
5000 |
6000 |
7000 |
8000 |
10000 |
||
|
Load center |
mm |
600 |
600 |
600 |
600 |
600 |
||
|
Power unit |
|
Diesel |
Diesel |
Diesel |
Diesel |
Diesel |
||
|
Operator type |
|
Driver/seat |
Driver/seat |
Driver/seat |
Driver/seat |
Driver/seat |
||
|
Tire type |
Front/rear |
Pnenumatic |
Pnenumatic |
Pnenumatic |
Pnenumatic |
Pnenumatic |
||
|
Wheel |
Front/rear |
4/2 |
4/2 |
4/2 |
4/2 |
4/2 |
||
|
Dimension |
Max. lifting height |
mm |
3000 |
3000 |
3000 |
3000 |
3000 |
|
|
Free lift |
mm |
205 |
205 |
210 |
205 |
205 |
||
|
Fork size |
L×W×T |
mm |
1220×150×60 |
1220×150×60 |
1220×150×65 |
1220×175×75 |
1220×175×75 |
|
|
Tilt range Mastf orward /backward |
deg |
6/12 |
6/12 |
6/12 |
6/12 |
6/12 |
||
|
Overall length(without fork) |
mm |
3455 |
3530 |
3590 |
3955 |
4255 |
||
|
Total width |
mm |
1995 |
1995 |
1995 |
2245 |
2245 |
||
|
Mast height (fork lowering) |
mm |
2500 |
2500 |
2500 |
2850 |
2850 |
||
|
Overall height fork raised With backrest |
mm |
4420 |
4420 |
4420 |
4330 |
4330 |
||
|
Height to head guard |
mm |
2450 |
2450 |
2450 |
2560 |
2560 |
||
|
Turning raduis(outside) |
mm |
3250 |
3300 |
3360 |
3650 |
3900 |
||
|
Front face of fork to front axle |
mm |
615 |
615 |
620 |
710 |
710 |
||
|
Right angle stacking aisle |
pallet size : 1100×1100 add clearence |
mm |
5500 |
5550 |
5620 |
6000 |
6250 |
|
|
Performance |
Speed |
Max Travelling full/no load |
km/h |
26/30 |
26/30 |
26/30 |
26/30 |
24/30 |
|
Lifting full/no load |
mm/s |
500/550 |
500/550 |
450/550 |
450/500 |
390/410 |
||
|
Lowering full/no load |
mm/s |
450/500 |
450/500 |
450/500 |
530/500 |
470/340 |
||
|
Max.drawbar pull |
full/no load |
kg |
5500/2250 |
5500/2250 |
5400/2200 |
5850/3220 |
5850/3220 |
|
|
Gradeability at 1.6km/h |
full load |
% |
37 |
33 |
29 |
24 |
22 |
|
|
Max. Gradeability |
full/no load |
% |
42/19 |
38/19 |
33/19 |
26/22 |
24/20 |
|
|
Weight |
Truck weight |
kg |
8050 |
8750 |
9450 |
11800 |
12450 |
|
|
Weight distribution |
Full load front/rear |
kg |
11710/1340 |
13090/1660 |
14520/1930 |
17900/1900 |
20160/2290 |
|
|
No load front/rear |
kg |
4020/4030 |
3860/4890 |
3760/5690 |
5550/6250 |
5480/6970 |
||
|
Frame |
Tires |
Number |
front/rear |
4/2 |
4/2 |
4/2 |
4/2 |
4/2 |
|
Model |
front axle |
8.25×15-14PR |
8.25×15-14PR |
8.25×15-14PR |
9.00×20-14PR |
9.00×20-14PR |
||
|
rear axle |
8.25×15-14PR |
8.25×15-14PR |
8.25×15-14PR |
9.00×20-14PR |
9.00×20-14PR |
|||
|
Wheelbase |
mm |
2250 |
2250 |
2250 |
2500 |
2800 |
||
|
Tread |
Front/rear |
mm |
1470/1700 |
1470/1700 |
1470/1700 |
1600/1700 |
1600/1700 |
|
|
Ground clearence |
At lowest point(mast) |
mm |
190 |
190 |
190 |
245 |
245 |
|
|
Frame |
mm |
230 |
230 |
230 |
320 |
320 |
||
|
Brake |
Service brake |
|
Brake booster-Dynamic braking |
|||||
|
Parking brake |
|
Mechanical-hand lever |
||||||
|
Engine & transimission |
Battery |
Voltage/capacity |
V/AH |
2×12V-80AH |
||||
|
Engine |
Model |
|
Chaochai 6102BG |
|||||
|
Rated power |
JIS PS |
110/2500 |
||||||
|
Rated torque |
JIS kg-m |
36/1650 |
||||||
|
Number of cylinders |
|
6 |
||||||
|
Placement |
Lit |
5.785 |
||||||
|
Fuel tank capacity |
Lit |
140 |
||||||
|
Transmission |
Speed forward/backward |
Power shift T/M |
2-2 power shift T/M |
|||||
|
Operating pressure |
Hydraulic system pressure |
kg/cm² |
200 |
|||||
