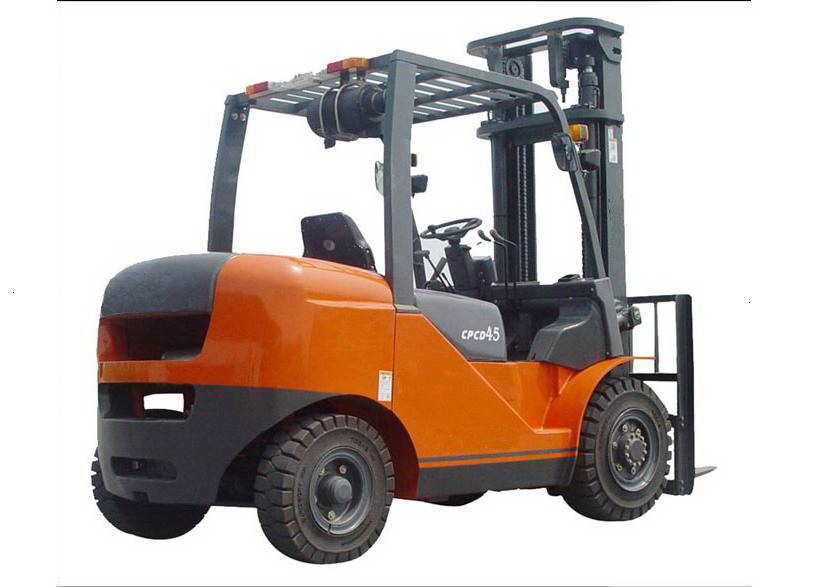

CPCD40-45 ISUZU
MAIN FEATURES
1. Enhanced comfort through innovative design.
2. Hydraulic transmission and mechanical transmission types are all available.
3. Flexible steering and small turning radius, with full Hydraulic Steering System.
4. We use scientific ergonomic method to design Forklift truck. The operation space has been efficiently enlarged. The rough feeling of the driver has been reduced to the lowest extends.
5. A variety of domestic and imported engines for you to choose. The emission meets EC and EPA new regulation.
6. Specially designed container door frame can enter the container for operation. This series forklifts can be equipped with two, or three full free lift mast, and various attachments, according to user’s demand.
7. Enclose cabin is made of assembling plate on overhead guard, high strength overhead is design to ensure the safety.
8. Operator presence sensing system, the system will cut off the driving force to prevent accidents, when the driver leave the seat during operation.
TECHNICAL SPECIFICATION
|
Model |
|
CPCD40 |
CPCD45 |
|
|
Load capacity |
kg |
4000 |
4500 |
|
|
Load center |
mm |
500 |
600 |
|
|
Max. lifting height(VM300 mast) |
mm |
3000 |
3000 |
|
|
Free lift (VM mast) |
mm |
150 |
140 |
|
|
Speed |
Max Travelling full/no load |
km/h |
16.5/18 |
18/19 |
|
Lifting full/no load |
mm/s |
380/480 |
410/430 |
|
|
Lowering full/no load |
mm/s |
450/420 |
380/340 |
|
|
Turning raduis (outsite) |
mm |
2560 |
2780 |
|
|
Right angle stacking aisle width(200mm clearance) |
mm |
4450 |
4585 |
|
|
Total length (with fork) |
mm |
3890 |
3100 |
|
|
Total width |
mm |
1345 |
1485 |
|
|
Mast height(fork lowered) |
mm |
2150 |
2300 |
|
|
Overall height fork raised(with backrest) |
mm |
4250 |
4266 |
|
|
Height to head guard |
mm |
2140 |
2270 |
|
|
Fork size |
L×W×T |
mm |
1070×150×50 |
1220×150×50 |
|
Tilt range |
Mast forward/backward |
deg |
6/12 |
6/12 |
|
Grounde clearence |
At lowest point(mast) |
mm |
120 |
100 |
|
Frame |
mm |
135 |
240 |
|
|
Wheelbase |
|
mm |
1800 |
2000 |
|
Tread |
front |
mm |
1120 |
1180 |
|
rear |
mm |
970 |
1190 |
|
|
Front overhang |
mm |
485 |
560 |
|
|
Truck weight(no load) |
kg |
5100 |
7230 |
|
|
Front(solid tires) |
|
28*9-15 |
300-15-18PR |
|
|
Rear(solid tires) |
|
6.50-10 |
7.00-12-12PR |
|
|
Model |
|
ISUZU 4JG2 |
Mitsubishi S6S |
|
|
Rated power |
KW/rpm |
61/2450 |
52/2300 |
|
|
Rated torque |
Nm/rpm |
190/1800 |
248/1700 |
|
|
Number of cylinder |
|
4 |
6 |
|
|
Displacement |
CC |
3.059 |
4.996 |
|
