TF25

MAIN FEATURES

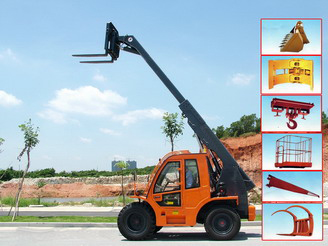

Telescopic Forklift Loader, which uses the four-wheel drive, the rigid suspension; The fluid mechanical drive, the hydraulic power changes with the hydraulic brake, the rear wheel changes. The operation installment is two quadrangle telescopic handle, has fork which fix could be side to move. Could use to pull in & out the box on the container, also for loading and unloading, Cargo stowing and short-haul handing. This type could be operated under many kinds of working conditions, is excellent equipment for craning, transporting, loading and unloading on Industry and Mining, Enterprise, Construction, Materials, Harbor, Municipal Engineering. Also has the scoop, the hook ,the suspend arm and so on each kind is differently for the customer’s choice to install. Its loading and unloading and the cross-country performance is highly the universal forklift is unable to compare.

TECHNICAL SPECIFICATION



Rated load

2500kg

Lifting load (Max.extend length)

1000kg

Max.lifting height of basic arm

4300mm

Max.lifting height of full extend arm

6000mm

Max.traveling speed

28km/h

Min.ground clearance

310mm

Min.turning Diameter (center of outer wheel)

12500mm

Grade ability

30%

Deadweight

7100kg

Overall dimension (L×W×H)

5560mm×2270mm×2560mm

Engine (Dongfeng Cummins)

Type

4BT3.9-C80

Rated power

60kw

Rated speed

2000r/min

Tyre

Front wheel

16/70-20

Rear wheel

8.25-20-14
