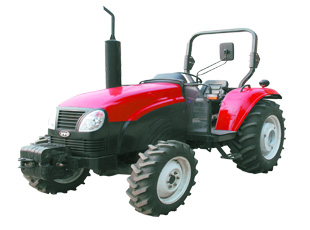

TR-504
Main Features
The TR-504 tractor is equipped with wet disc brakes, ensuring desirable braking performance and high reliability. It adopts the planetary end transmission and double action clutches. It is applicable to paddy fields and dry farmlands. It adopts the engagement sleeve gear shifting and force and position combined regulation. It is large in wheel span and axle base, heavy in dead load, and desirable in chassis stability. Besides, it is equipped with safety anti-toppling shelf for optional assemblage. Technical Specifications
Technical Specifications
|
Engine |
|
|
|
Type |
Four-cylinder, vertical, water-cooled, four-stroke, direct injection diesel |
|
|
model |
YTR4105T54 |
|
|
Rated power |
kW |
37 |
|
Rated rotation speed |
r/min |
2200 |
|
Transmission System |
||
|
Speed range |
km/h |
2.37-31.06 |
|
Overall Dimension |
mm |
3797×1784×1520 |
|
Min. ground clearance |
mm |
390 |
|
Machine boby |
|
|
|
Tyres, front / rear |
|
7.50-16/12.4-28 |
|
Axle base |
mm |
2000 |
|
Front wheel tread / Rear wheel tread |
mm |
1350-1450/1300-1600 |
|
Min. turning radius |
m |
4.1±0.3 |
|
Min. operating weight |
kg |
1830 |
|
PTO shaft type |
|
Semi-independent |
|
PTO shaft rotation speed |
r/min |
8.8 |
