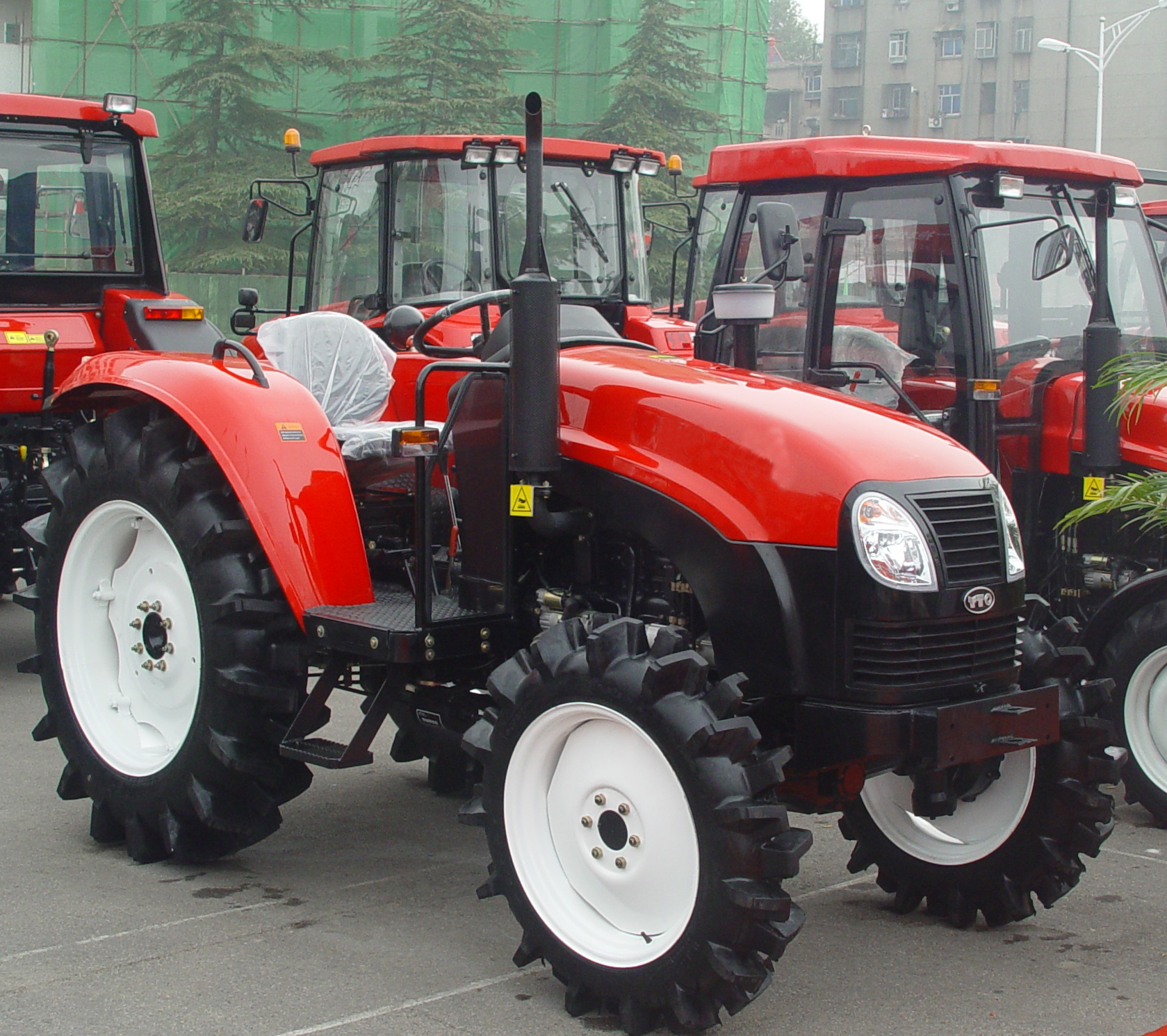

TR-604
Main Features
Fit for paddy fields,The TR-604 tractor is equipped with wet disc brakes, ensuring desirable braking performance and high reliability. It adopts the planetary end transmission and double action clutches. It is applicable to paddy fields and dry farmlands. It adopts the engagement sleeve gear shifting and force and position combined regulation. It is large in wheel span and axle base, heavy in dead load, and desirable in chassis stability. Besides, it is equipped with safety anti-toppling shelf for optional assemblage.
Technical Specifications
|
Engine |
|
|
|
model |
|
YTR4105T51SA-1 |
|
Rated rotation speed |
r/min |
2200 |
|
Type |
Four-cylinder, vertical, water-cooled, four-stroke, direct injection diesel |
|
|
Speed range(Forward) |
km/h |
2.95-38.62 |
|
Speed range (reverse) |
km/h |
2.52~33.09 |
|
No. of gears |
4X2 |
|
|
Overall Dimension |
mm |
3882×1715×1810 |
|
Min operable mass |
kg |
2550 |
|
Min. ground clearance |
mm |
430 |
|
Machine boby |
|
|
|
Axle base |
mm |
2127 |
|
Front wheel tread / Rear wheel tread |
mm |
1250/1300-1600 |
|
Min. turning radius |
m |
4.2+/-0.3 |
|
Min. operating weight |
kg |
2245 |
|
Specific fuel consumption under rated conditions |
g/kW.h |
≤242 |
|
Tyres, front / rear |
|
8.3-24/11-32(paddy field) |
|
Lifting capacity |
kN |
9.9 |
|
PTO shaft type |
|
Semi-independent |
|
PTO shaft rotation speed |
r/min |
540/1000 |
