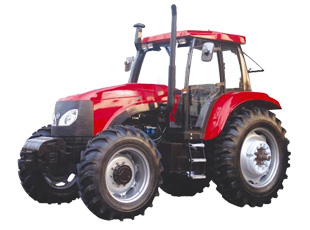

TR-1804
MAIN FEATURES
The TR-1804 is developed on the basis of the Italian wheeled tractor chassis technology, adopting the British technology-based 6-cylinder turbocharged engine, which is featured with specific low fuel consumption and better power economic efficiency. The tractor has multiple gears, a wide speed scope, and a large capacity of fuel tank, ensuring long-time operations with a single fueling. Besides, it is flexible in steering and easy to operate.
TECHNICAL SPECIFICATION
|
Engine |
||
|
Model |
|
LR6105ZWT13 |
|
Type |
|
Vertical, inter-cooled, turbo-charged, direct injection diesel engine |
|
Rated power |
kw |
132.3 |
|
Rated rotation speed |
r/min |
2200 |
|
Transmission system |
||
|
Gears forward/Gears reverse |
|
12/4 |
|
Speed range, forward |
km/h |
2.4-30.69 |
|
Speed range, reverse |
km/h |
4.48-12.11 |
|
Machine body |
||
|
Wheel base |
mm |
2848 |
|
Front wheel tread |
mm |
1704-2200 |
|
Rear wheel tread |
mm |
1620-2200 |
|
Min. ground clearance |
mm |
495 |
|
Min. turning radius |
m |
5.4 - 6.2 |
|
Min. operating weight |
kg |
6500 |
|
Specific fuel consumption under rated conditions |
g/kW.h |
≤235 |
|
Tyres (front/rear) |
|
16.9-28/20.8-38 |
|
Min. lifting capacity (at a place of 610mm behind the suspension point) |
kN |
≥35 |
|
PTO shaft rotation speed |
r/min |
540/1000 |
|
Depth control manner |
|
Position control, floating control, draft control, and draft-position control |
|
Rated tractive force |
kN |
39 |
|
L×W×H |
|
5200X2696X2970mm |
