TR-X750
MAIN FEATURES

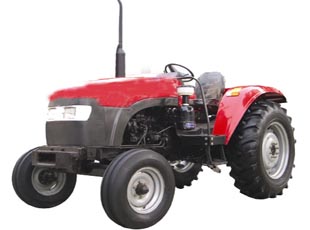

The TR-X750 tractor is developed on the basis of the Italian wheeled tractor chassis technology and adopts the British technology-based engine. The machine body has a streamline configuration. It has a low specific fuel consumption and a desirable power economic efficiency. It has multiple gears and a wide speed range. Besides, it is flexible in steering and easy to operate.
TECHNICAL SPECIFICATION
|
Engine |
||
|
Model |
|
LR4105T73A |
|
Type |
|
Vertical, water-cooled, four-stroke, direct injection economy diesel engine |
|
Rated rotation speed |
r/min |
2400 |
|
Transmission system |
||
|
Number of speed gears, forward / reverse |
|
12/4 |
|
Speed range forward |
km/h |
2.02-33.31 |
|
Speed range reverse |
km/h |
5.23-15.69 |
|
Machine body |
||
|
Wheel base |
mm |
2342 |
|
Number of speed gears, forward |
mm |
1400-1900 |
|
Number of speed gears, reverse |
mm |
1500-2100 |
|
Min. ground clearance |
mm |
430 |
|
Min. turning radius |
m |
3.9 |
|
Max. operating weight |
kg |
3425 |
|
Specific fuel consumption under rated conditions |
g/kW.h |
≤242 |
|
Tires, front / rear |
|
7.5-16/14.9-30 |
|
Max. tractive force |
kN |
21 |
|
Overall dimensions (L×W×H) |
mm |
4160×1878×2820 |
