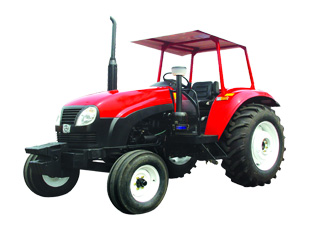

TR-X904
MAIN FEATURES
The TR-X904 tractor is developed on the basis of the Italian wheeled tractor chassis technology, adotping the British technology-based 4-cylinder turbo-charged engine. The mochine body has a streamline configuration. The tractor has a low specific fuel consumption and a desirable energy efficiency. It has multiple gears and a wide speed range. Besides, it is flexible in steering and easy to operate.
TECHNICAL SPECIFICATION
|
Engine |
||
|
Model |
|
LR4105ZT55 |
|
Type |
|
Vertical, water-cooled, four-stroke, energy-efficiency improved, direct injection diesel |
|
Rated rotation speed |
r/min |
2300 |
|
Transmission system |
||
|
Number of speed gears, forward / reverse |
|
12/4 |
|
Speed range, forward |
km/h |
1.65-27.2 |
|
Speed range, reverse |
km/h |
4.3-12.8 |
|
Machine body |
||
|
Wheel base |
mm |
2314 |
|
Front wheel tread Rear wheel tread |
mm |
1562-2000 |
|
Rear wheel tread |
mm |
1520-2120 |
|
Min. ground clearance |
mm |
440 |
|
Min. turning radius |
m |
4.5 |
|
Max. operating weight |
kg |
4560 |
|
Specific fuel consumption under rated conditions |
g/kw.h |
《230 |
|
Wheel tyres (front / rear) |
inch |
13.6-24/16.9-34 |
|
Lifting capacity |
kN |
17 |
|
PTO shaft type |
|
Rear-positioned, independent, and synchronous |
|
PTO shaft rotation speed |
r/min |
720 |
|
Overall dimensions （L×W×H） |
mm |
4260X2120X2990 |
