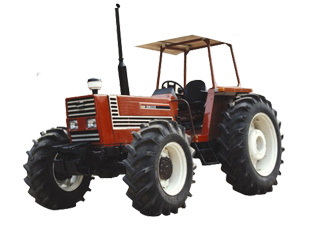

TR-X1004
MAIN FEATURES
Employ original electronic control Perkins engine, high torque,powerful overload performance,low fuel consumption;
Absorb the design features of Italian mechanical T/M of the same power range,with rational layout structure;
Independent oil loop,hydraulic steering system control;safe and reliable wet or disc brakes for rear axle;
Brand new flat floor cab,elegant and comfortable,options:with cold or warm air or A/C; Two independent PTO output speeds,540 and 1000 rpm,adaptable for all operation requirements; High lifting force,with multiple tilling depth control;
Two groups of hydraulic output valves optioned with 3-group hydraulic valves.
TECHNICAL SPECIFICATION
|
Engine |
||
|
Type model |
|
Perkins 1104D-E44TA |
|
Features |
|
4-cyl,in-line,water-cooled,turbo-charged,air-air intercooler |
|
Rated power |
kw |
73.5/100 |
|
Rated speed |
r/min |
2400 |
|
Displacement |
cc |
4400 |
|
Transmission System |
||
|
clutch |
|
12-inch,dry,double-action,independent control |
|
Gears(Forward/Reverse) |
|
12/4 |
|
Range of speed(Front) |
km/h |
2.24-29.3 |
|
Range of speed(Rear) |
km/h |
4.83-13.67 |
|
Machine boby |
||
|
Wheelbase |
mm |
2648.5 |
|
Front tread |
mm |
1822-2153 |
|
Rear tread |
mm |
1600-2200 |
|
Min ground clearance |
mm |
450 |
|
Steering radius |
m |
6.5 |
|
Min operable mass |
kg |
4450 |
|
Standard tire size |
inch |
14.9-24/16.9-38 |
|
Lifting force(taken 610mm behind the lower suspension point) |
kN |
22 |
|
PTO power |
kw/ps |
64/87 |
|
Rated PTO revolution speed |
r/min |
540/1000 |
|
Tilling depth control method |
|
Integrated draft and position control and float control |
|
Rated traction force |
kN |
24 |
|
Electrical system voltage |
V |
12 |
|
Overall Dimension（LXWXH） |
mm |
4950X2290X2925 |
|
Certificates |
|
|
|
e-mark homologation |
|
|
