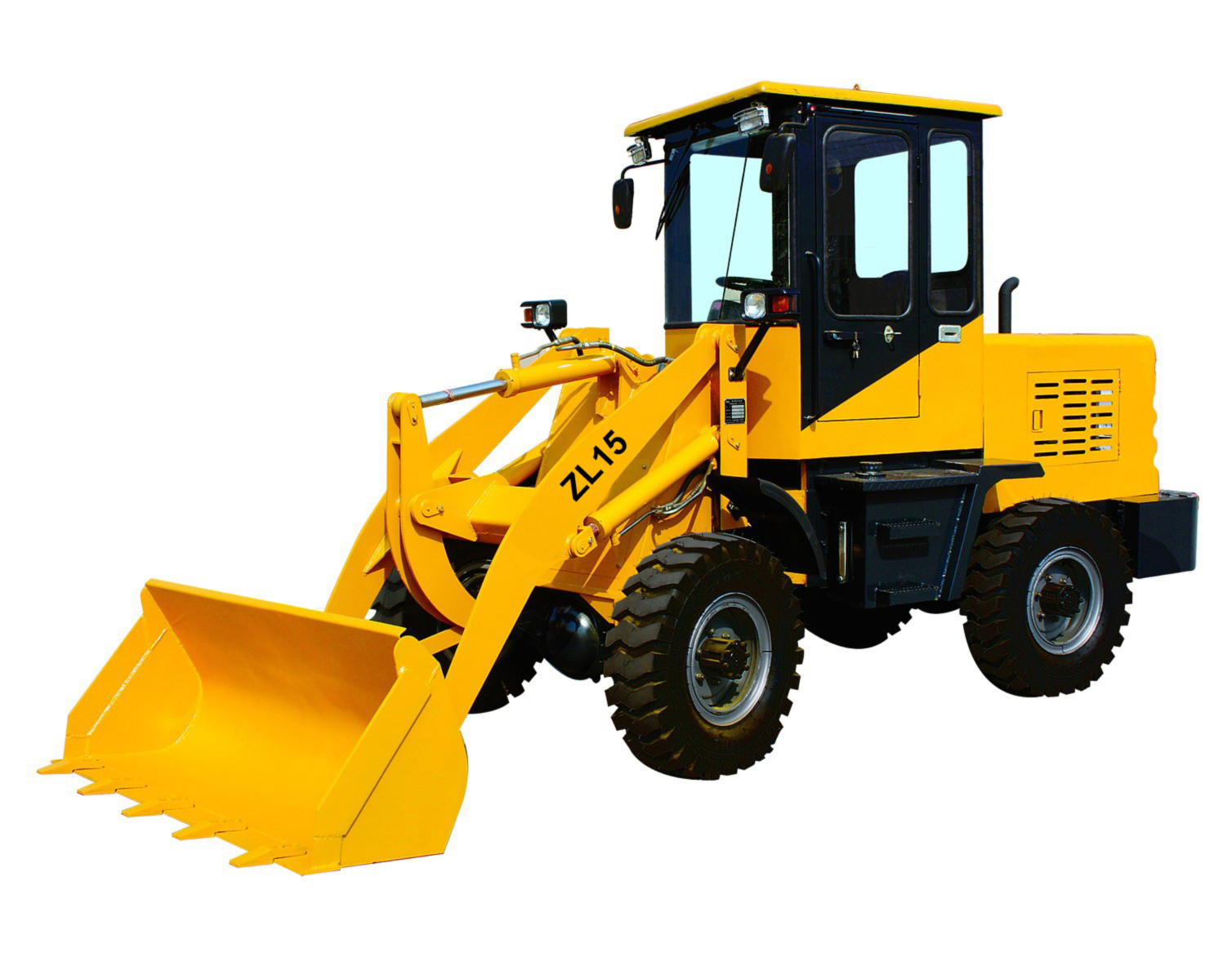

ZL15
| Main Technical Data | |
|
Bucket Capacity (m3) |
1.03 |
|
Rated Load ( t ) |
1.8 |
|
Max. Dump Height (mm) |
3200 |
|
Dump Distance (mm) |
930 |
|
Max. Break Force (KN) |
32 |
|
L*W*H (mm) |
5800*1730*2800 |
|
Operating Weight (t) |
4 |
|
Total Cycling Time (s) |
9 |
|
Wheel Base (mm) |
2160 |
|
Tread (mm) |
1520 |
|
Min. Turn Radius (mm) |
3500 |
|
Engine |
|
|
Model |
Weichai Huafeng R4105G41 |
|
Pattern |
Turbocharger, inline, water-cooled, 4-stroke, direct injection |
|
Rated Power (kw) /Speed (rpm) |
47/ 2400 |
|
Max torque (N.m) |
270 |
|
Normal fuel consumption (g/kw.h) |
258 |
|
Total displacement (l) |
3.76 |
|
Fuel |
0 or -10 light diesel |
|
Torque converter and transmission system |
|
|
Model of torque converter |
YJ265 |
|
Pattern |
3-element single stage |
|
Transmission type |
Full-powershift, countershaft type |
|
Number of gear |
2 forward 2 reverse |
|
Max travel speed (km/h) |
24 |
|
Alxe |
|
|
Alxe |
WANGDA |
|
Main reducer Pattern |
Arc taper gear, modelration of first grade |
|
Pattern of wheelside moderation |
Single stage planetary |
|
Tire |
|
|
Tire Size |
20.5/70-16 |
|
Steering system |
|
|
Pattern |
Articulated and hydraulic steering system |
|
Min turning radius (outside of bucket) (mm) |
3500 |
|
Max. turning angle |
35°±1 |
|
Hydraulic System |
|
|
Implement pump |
CBG1045 |
|
Distribution device model |
DF15.2C |
|
Brake System |
|
|
Service Brake |
Air assisted oil disc on four wheel |
|
Parking Brake |
Soft axle control, outside bunch drum type |
|
Note: Materials and specifications are subject to change without notice. |
|
