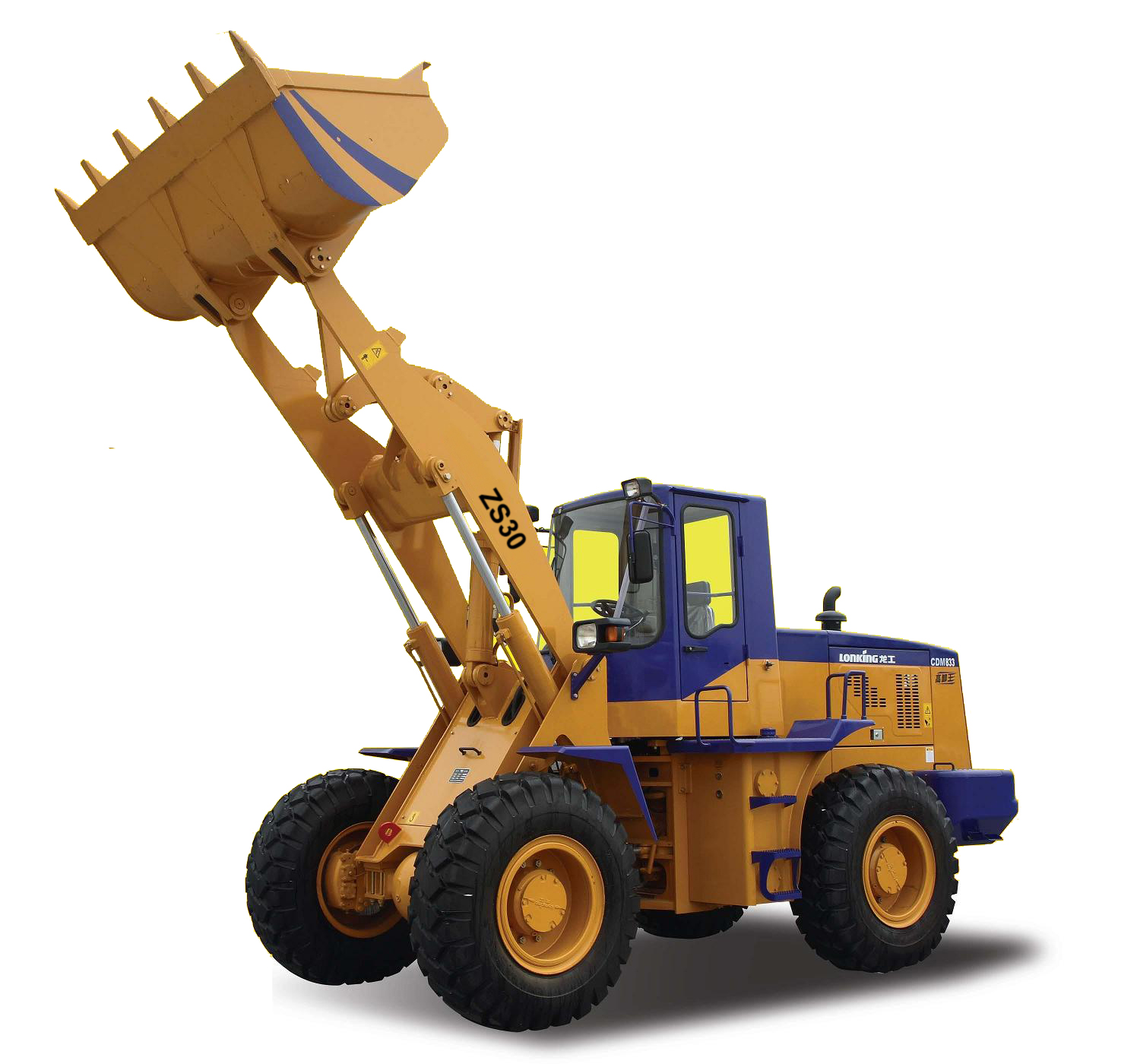

ZL30
Main features:
--Originally from Komatsu technology, high reliability and productivity
--Cummins China engine, powerful and reliable
--Torque converter and counter-shaft transmission gearbox are separated independently, higher reliability and easier maintenance
--Driving Axle in Meritor technology
--Fully hydraulic steering system, power shift transmission, easy to operate
--Comfortable operation environment, spacious cabin, Grammer seat,
--Various attachment are available, such as Log clamp, pipe clamp, rock bucket, loose bucket etc. to meet different needs
|
Main Technical Data |
|
|
Bucket Capacity (m3) |
1.7 |
|
Rated Load ( t ) |
3 |
|
Max. Dump Height (mm) |
3250 |
|
Dump Distance (mm) |
1200 |
|
Max. Break Force (KN) |
138 |
|
L*W*H (mm) |
7050*2430*3120 |
|
Operating Weight (t) |
9.5 |
|
Total Cycling Time (s) |
11.3 |
|
Wheel Base (mm) |
2760 |
|
Tread (mm) |
1800 |
|
Min. Turn Radius (mm) |
5700 |
|
Engine |
|
|
Model |
DCEC CUMMINS |
|
Pattern |
Turbocharger, inline, water-cooled, 4-stroke, direct injection |
|
Rated Power (kw) /Speed (rpm) |
92/ 2100 |
|
Max torque (N.m) |
860 |
|
Normal fuel consumption (g/kw.h) |
162 |
|
Total displacement (l) |
6 |
|
Fuel |
0 or -10 light diesel |
|
Torque converter and transmission system |
|
|
Model of torque converter |
YJ320B-1 |
|
Pattern |
3-element single stage |
|
Transmission type |
Full-powershift, countershaft type |
|
Number of gear |
4 forward 2 reverse |
|
Max travel speed (km/h) |
40 |
|
Alxe |
|
|
Alxe |
XIUZHOU |
|
Main reducer Pattern |
Arc taper gear, modelration of first grade |
|
Pattern of wheelside moderation |
Single stage planetary |
|
Tire |
|
|
Tire Size |
17.5-25 |
|
Steering system |
|
|
Pattern |
Articulated and hydraulic steering system |
|
Min turning radius (outside of bucket) (mm) |
5700 |
|
Max. turning angle |
37°±1 |
|
Hydraulic System |
|
|
Implement pump |
CBGV2100 |
|
Displacement (L/min) |
100 |
|
System working pressure (Mpa) |
27.5 |
|
Distribution device model |
DF25.2C |
|
Brake System |
|
|
Service Brake |
Air assisted oil disc on four wheel |
|
Parking Brake |
Soft axle control, outside bunch drum type |
|
Note: Materials and specifications are subject to change without notice. |
|
