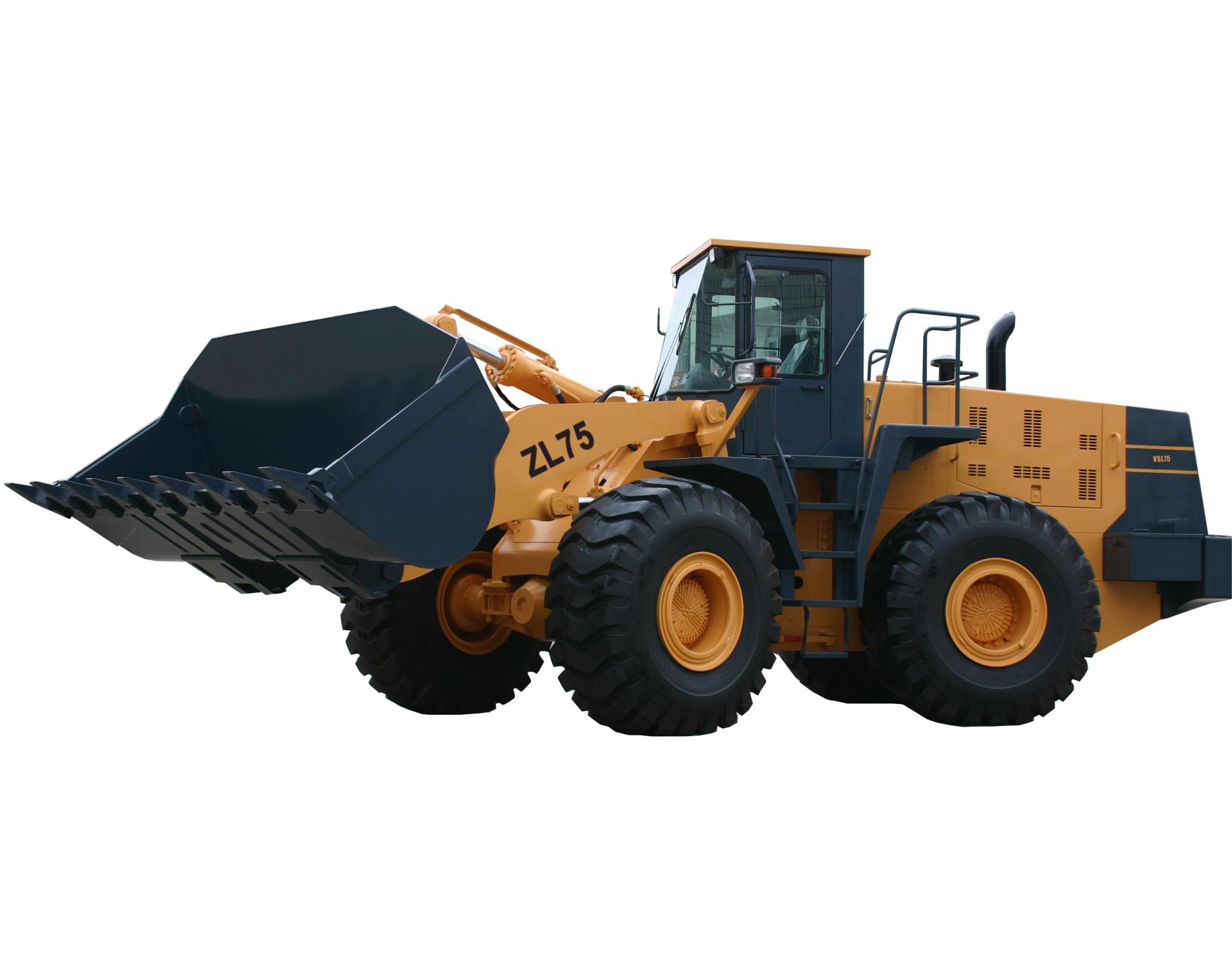

ZL75
|
Model |
Unit |
|
|
|
|
|
|
Main Technical Data |
|
|
|
Total weight |
kg |
23500 |
|
Bucket capacity |
m3 |
4.2 |
|
Rated load |
kg |
7500 |
|
Movable arm lifting time |
S |
6.1 |
|
Three item time |
S |
≤12 |
|
Forward I-IV gears |
km/h |
7.4-37 |
|
Reverse I-III gears |
km/h |
7.4-26 |
|
Max digging force |
kN |
220 |
|
Dump angle |
。 |
≥45 |
|
Min turning radius |
mm |
6487 |
|
Dumping height |
mm |
3220 |
|
Dumping reach |
mm |
1275 |
|
Overall Dimension |
|
|
|
Overall length |
mm |
8696 |
|
Overall width |
mm |
3099 |
|
Overall height |
mm |
3730 |
|
Wheelbase |
mm |
3400 |
|
Minimun ground clearance |
mm |
495.5 |
|
Engine |
|
|
|
Engine model |
|
Cummins USA/UK M11-C290 |
|
Engine rated power |
kW |
216 |
|
Fuel consumption |
g/kw.h |
≤198 |
|
Fuel tank capacity |
L |
423 |
|
Hydraulic oil tank capacity |
L |
300 |
|
Transmission System |
|
|
|
Torque converter type |
|
Single stage, single phase and 3-elements |
|
Cooling mode |
|
Oil cooling pressure circulating |
|
ZF Transmission type |
|
Fixed shaft power shift |
|
Shifts(Forward/Backward) |
|
F4/R3 |
|
Travelling speed |
km/h |
I II III IV |
|
Forward |
|
7.4 12.4 25.9 37 |
|
Bakward |
|
7.4 12.4 25.9 |
|
Axles |
|
|
|
Max. drawing force |
kN |
222 |
|
Gear ratio of main drive |
|
4.777 |
|
Gear ratio of hub reduction |
|
5.167 |
|
Max. gradient capacity |
|
25° |
|
Steering System |
|
|
|
Type |
|
Middle articulated single--plate frame, flow amp full hydraulic steering |
|
Steering angle |
|
±38° |
|
Min. steering dadius outside of rear wheel |
mm |
6487 |
|
System pressure |
MPa. |
17.5 |
|
Flow rate at engine rated speed |
L/min |
217 |
|
No. of cylinders-BorexStroke |
mm |
2-￠100x441 |
|
Cabin |
|
|
|
Vibration-absorbed humanistic cabin with adjustable steering wheel and chair and streamline dashboard provide low noise comfortable operation and wide eyeshot. |
||
|
Working Equipment |
|
|
|
Single swing arm high fulcrum working equipment, Automatic leveling device as standard confugration |
||
|
Max breakout force |
kN |
220 |
|
Dumping clearance |
mm |
3220 |
|
Dumping reach |
mm |
1275 |
|
Working Hydraulic System |
|
|
|
Type |
|
Single handle P.P.C |
|
System pressure |
Mpa |
21 |
|
Flow rate at engine rated speed |
L/min |
403 |
|
No. of cylinders-BorexStroke |
|
|
|
Lifting cylinder |
mm |
2-￠180x767 |
|
Tilting cylinder |
mm |
1-￠210x550 |
|
Lifting time |
s |
6.1s |
|
Lowering time |
s |
3.8s |
|
Dumping time |
s |
1.9s |
|
Tyre |
|
|
|
Tyre size |
|
26.5-25 |
|
Brake System |
|
|
|
Service Brake |
|
double brake pedal dual circuit full hydraulic brake |
|
Parking brake |
|
Manual electro-controlled actuate drum brake act as emergency brake |
|
Refill Capacity |
|
|
|
Fuel tank |
L |
423 |
|
Engine crank cases |
L |
32 |
|
T/C and T/M |
L |
38 |
|
Hydraulic tank |
L |
300 |
|
F/R axles |
L |
51(for each) |
|
Standard Equipment |
|
|
|
HUSCO control valve and joystick valve, ZF transmission, ZF axles, MICO brake, imported center lubricating.Bergstrom air conditioner |
||
