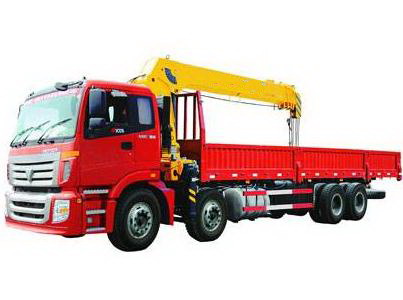

SQ14SK4Q
MAIN FEATURES
With the advantages of convenient operation, high efficiency, safety and reliability, the truck mounted crane features high speed, and strong gradeability.
TECHNICAL SPECIFICATIONS
|
|
|||||||
|
Model |
SQ14SK4Q |
Unit |
|||||
|
Max Lifting Capacity |
14000 |
kg |
|||||
|
Max Lifting Moment |
35 |
T.M |
|||||
|
Recommend Power |
32 |
kw |
|||||
|
Max Oil Flow of Hydraulic System |
63 |
L/min |
|||||
|
Max Pressure of Hydraulic System |
26 |
MPa |
|||||
|
Oil Tank Capacity |
160 |
L |
|||||
|
Rotation Angle |
All Rotation |
||||||
|
Crane Weight |
4800 |
kg |
|||||
|
Installation Space |
1300 |
mm |
|||||
|
Choice of Chassis |
BJ1317VNPJJ-S5 FOTON；NXG1310D3ZEX XCMG； |
||||||
|
SQ14SK4Q Working Radius (m) |
2.5 |
5 |
8 |
11 |
13.2 |
15.8 |
|
|
Lift Capacity(kg) |
14000 |
6000 |
3500 |
2300 |
1800 |
1200 |
|
