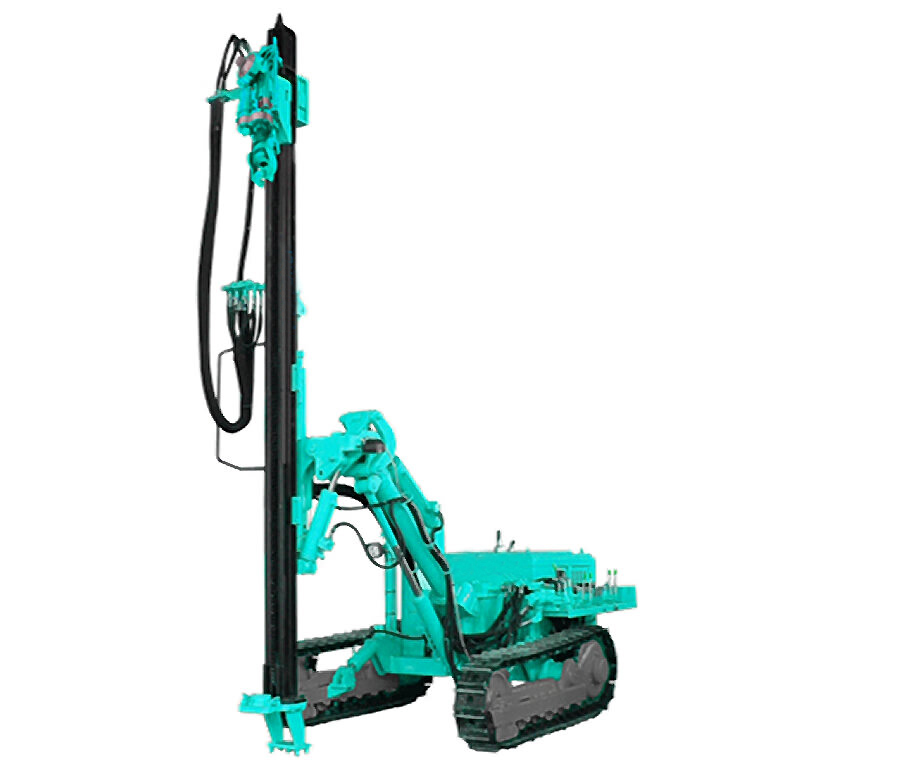

R200BT
Main Features
1- With built-in combustion engine, good maneuverability and fast travel speed to ensure energy-saving and efficiency
2- Crawler chassis travel system with advanced hydraulic drive technology to provide convenient adjustment and control , can be steering steadily and reliable, with powerful traction, strong grade-ability and traffic ability, no slipping on muddy way.
3- Perfect boom displacement, orientation device to enable multi-aspect and slope drilling.
4- All engines are equipped with hydraulic control , every movement and the speed of the movement can be modified, thus the equipment can provide accurate positioning also easy to use.
5- in order to adapt to various working conditions, the drilling rig is equipped with hydraulic leveling mechanism , flexible rig positioning mechanism, and rig compensating mechanism.
6- High-efficiency , 3 times quicker than wind droved drills: Low power comsuption ,35%-75% lower than other air compressor droved drills.
7- safe and easy operate , no dust, low noise.
8- Operator Cabin equipped with cool/warm air conditioner to provide comfortable work environment . Easy-to-read ALL-IN-ONE monitor panel enable operator. light-hearted operation, all indicator/alarming light/engine monitor/hydraulic system monitor are installed on one panel.
9- Can be equipped with our patent mechanism ; auto-antistuck mechanism (optional) which can prevent rig-stuck and improve the drilling efficiency.
Technical Specification
| Rock drilling parameter | Slewing torque | 60～200N.m |
| Rotary speed | 200～400rpm | |
| The impact of hydraulic | 14～16MPa | |
| The impact of power | 34～50Hz | |
| Drilling parameter | Borehole diameter | Ф27～Ф64mm |
| Pipe diameter | LG722 | |
| Drilling depth | -12m | |
| Drilling the highest levels | 4.15m | |
| Pitch angle of slip plane | 0-102° | |
| Slip plane rotation angle | -82～42° | |
| Arm pitch angle drill | -12～30° | |
| Tracked weing plane angle | -12～12° | |
| Pipe length | 1.5～3m | |
| Promoting the parameters | Promote the itinerary | 2～3.5m |
| Promote axial | 4～20KN | |
| Lifting power | ～30KN | |
| Enhance the speed | 20mpm | |
| Slagging mode | Water rinse | ～4.0MPa,10L/min |
| Gas pressure washing | ～0.8MPa,1.5m3/min | |
| Operating parameters | Walking speed | ～1.5km/h |
| Gradeability | 30° | |
| Machine parameters | Cab | air conditioner |
| Control mode | pilot operation | |
| Engine power | 58KW @ 220rpm | |
| Dimensions(mm) | 7600x1800x2730 | |
| Tatal weight of rig | 7.8T |
