KH400

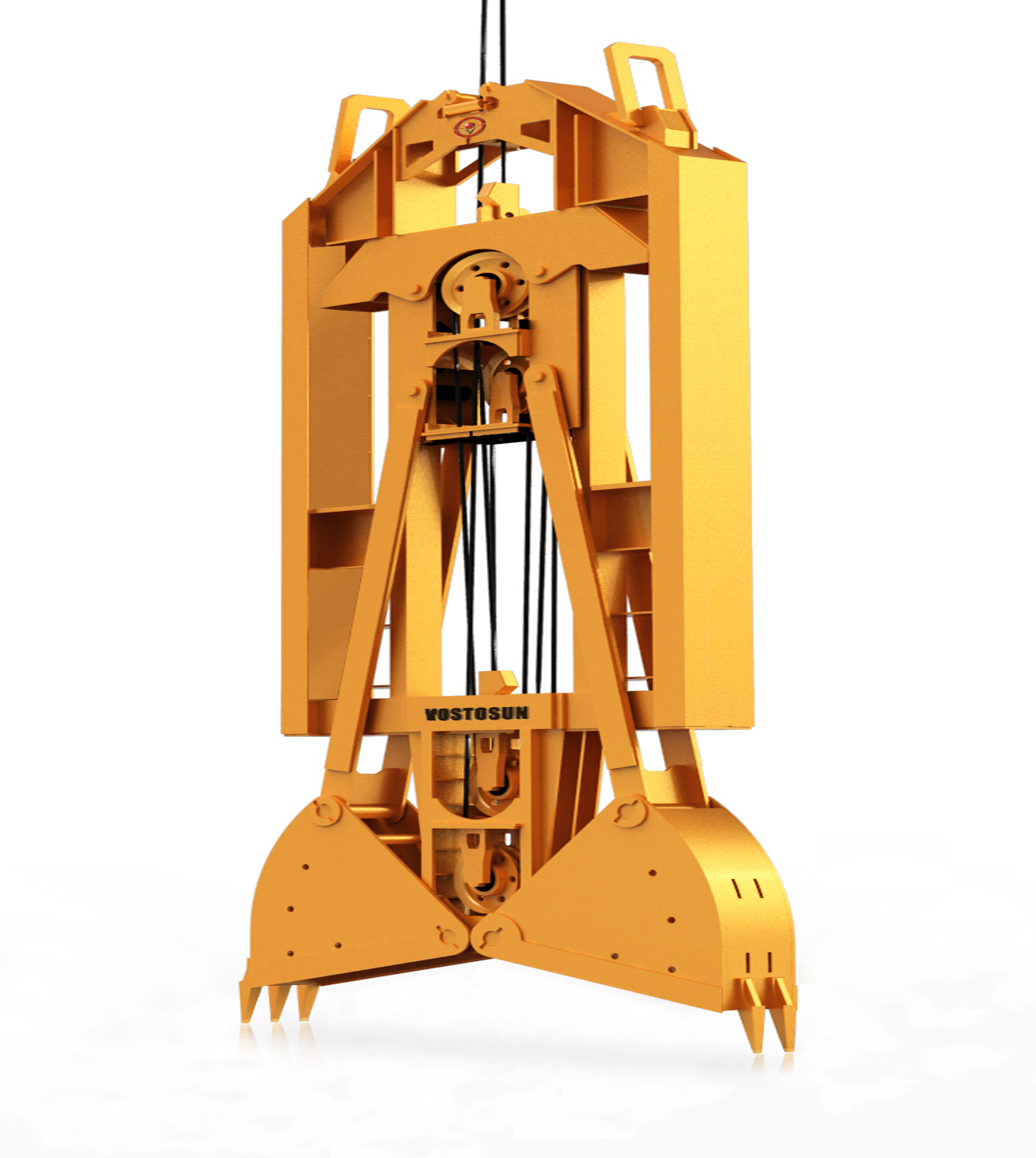

KH400 DIAPHRAGM WALL GRAB
Underground diaphragm wall grooving machine, is a conventional type of underground
diaphragm wall grooving equipment meticulously produced by KINHAN , the device can
operate through crawler crane equipment , achieves the international idea of "
multipurpose operation of one machine" .According to a variety of different construction conditions,
KINHAN Heavy R&D team carries on related performance match. Professional design
results out of comprehensive analysis on stability have strong power. This machine has
high reliability and stability.
The working device is purely mechanical structure, the structure is simple,
easy to operate and maintain. With KINHAN professional design grab, single bucket
capacity up to 1.6m³ greatly improve operational efficiency. The grooving width is 400-
800mm, the maximum groove depth is up to 60 meters, it’s a ideal choice that into
the slot of conventional underground construction equipment.
TECHNICAL SPECIFICATIONS
Parameter of Capability
|
Type |
Wall width |
Wall length |
Wall depth |
Bucket capacity |
Weight |
Dia of tightwire |
|
KH400 |
400 mm |
3500 mm |
60 m |
0.8 m³ |
9.8 t |
28 mm |
|
KH500 |
500 mm |
3500 mm |
60 m |
1.0 m³ |
10.2 t |
28 mm |
|
KH600 |
600 mm |
3500 mm |
60 m |
1.2 m³ |
10.5 t |
28 mm |
|
KH700 |
700 mm |
3500 mm |
60 m |
1.4 m³ |
10.8 t |
28 mm |
|
KH800 |
800 mm |
3500 mm |
60 m |
1.6 m³ |
11.1 t |
28 mm |
|
Crawler cranes:1.≥40t；2.Double winch，main/auxiliary winch force:≥200KN;3.Lifting height:≥25m. |
||||||
