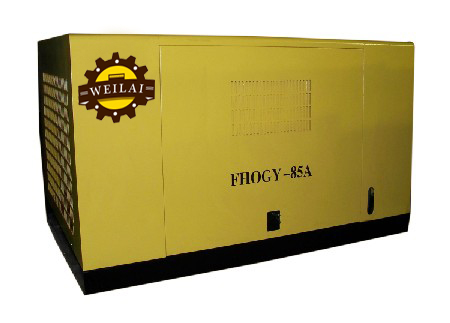

PORTABLE DIESEL TYPE(50-102HP)

The single screw compressor is a rotary, positive displacement compressor which incorporates a main screw and two gate rotors. Compression of the air is accomplished by the engagement of two gate rotors with the helical grooves in the main screw. It is ideal and simple enough to realize the compressor’s long service life, low noise and low vibration. The drive shaft imparts the rotary motion to the main screw which in turn drives the intermeshed gate rotors.

The compressor is comprised of three fundamental components that rotate and complete the work of the compression process. This typically includes a cylindrical main screw with six helical grooves and two planar gate rotors, each with 11 teeth. The rotational axes of the gate rotors are parallel to each other and mutually perpendicular to the axis of the main screw.

Model

FHOGY50A

FHOGY50A-H

FHOGY85A

FHOGY102A

Power(Kw)

Horse Power

102

Air delivery m3/min (cfm) &
working pressure bar (psi)

3.3 (116) @ 7(100)	4.6(162) @ 7(100)	6.0(212) @ 7(100)	7.0(247) @ 7(100)
3.15 (110) @ 8(115)	4.5(158) @ 8(115)	5.8(205) @ 8(115)	6.6(233) @ 8(115)
3.0 (105) @ 8.5(125)	4.4(155) @ 8.5(125)	5.6(197) @ 8.5(125)	6.3(222) @ 8.5(125)
2.8 (98) @ 10(145)	4.2(148) @ 10(145)	5.2(184) @ 10(145)	6.0(212) @ 10(145)

Trailer design

2 wheels

Diesel Engine

FOTON BJ493G2(4JB1）

CHAOCHAI 4102BQ

CUMMINS 4BT3.9-C100

Rotary Speed r/min

3000

3300

2400

Voltage(v)

12v

24v

Logon Mode

Diesel engine Direct Starting

Length (with tow-bar)

2955

3340

3850

Length (without tow-bar)

1720

1850

2230

Width

1100

1470

1700

Height

1500

1550

1650

Air Outlet

2 - 3/4"

3 - 3/4"

Weight

950

1300

1850
