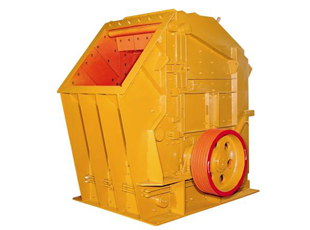

PFC Impact Crusher

PFC Series Impact Crusher is usually acted as medium crushing machine after coarse crushing. It is capable of crushing mineral rocks with compressive strength up to 320 MPa, featuring with greater processing capability and finer discharging particles. The crushed products are in cubic shape with low flakes and no internal cracks. This type of equipment is preferable to be selected as the first choice for crushing fine quality stone materials used for highway, water conservancy, airport, civil construction and other industries.

MAIN FEATURES

1. The combination of multi crushing chambers can make the product in uniform particle sizes, which are suitable for crushing hard rocks.
2. The bottom impact plate structure makes the crushed products smaller in cubic shape with no internal cracks.
3. These series have big feed opening which is more easily for disposing production lines.
4. New type of high alloy abrasion material makes the service life of blow bars, impact plates, and liner plates longer.

PFC Impact Crusher







TECHNICAL SPECIFICATIONS


Model Feed Opening(mm) Rotor diameter
(mm)		 Rotor width
(mm)		 Power
(kW)		 Capacity(t/h)in diffrernt discharge size(mm) Weight
(t)
76 63 51 38 25 19
PFC1010 930×800 1020 914 55-75 135 120 110 94 80 60 10.3
PFC1012 1160×800 1020 1143 90-110 170 150 137 120 100 75 11.5
PFC1016 1540×800 1020 1524 110-132 215 186 160 145 116 95 13.35
PFC1408 1065×778 1330 762 55-75 173 152 140 121 102 76 11.4
PFC1410 1065×930 1330 914 90-110 209 184 169 145 124 92 13.9
PFC1412 1160×1065 1330 1143 132-160 261 230 211 184 155 116 16
PFC1416 1540×1065 1330 1524 185-220 422 382 344 303 254 193 19.5
PFC1420 1844×1065 1330 1848 185-220 548 496 448 394 330 250 22
