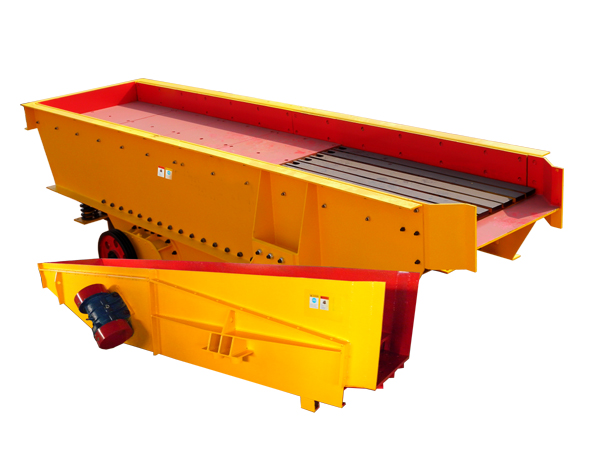

Vibrating Feeder
MAIN FEATURES
ZSW Series Vibrating Feeder is the latest type of super short linear vibrating feeder, designed specifically for feeding large lump of materials evenly before the primary crushers at crushing & screening station.
This series is various in models, solid in construction, impact-proof and reliable in operation. It can not only assure constant and even feeding, but also can screen the feeding materials, which can make the system more economical and rational. It is indispensable equipment in the screening & crushing production line.
FEATURES:
1. The latest super short liner vibrating feeder;
2. Designed specifically for feeding large lump of materials;
3. It can screen the materials efficiently under the condition of guaranteeing continuous and uniform feeding.
TECHNICAL SPECIFICATION
|
|
Max. Feeding Size (mm) |
Capacity (t/h.) |
Eccentric Shaft Speed (rpm) |
|
|
Installation Slope(º) |
Overall Dimension (L x W x H)（mm） |
|
Chute Size |
|
( mm ×mm) |
|||||||||
|
GZD-250×75 |
300 |
50-80 |
|
1.5x2 |
2 |
0-10 |
2580x1430x600 |
1.29 |
2500x750 |
|
GZD-300×90 |
450 |
80-100 |
|
2×3.0 |
2 |
0-10 |
3050×1430×1550 |
2.96 |
3000×900 |
|
GZD-370×100 |
500 |
100-150 |
|
2×3.7 |
2 |
0-10 |
3980×1878×866 |
3.70 |
3700×1000 |
|
GZD-490×110 |
580 |
120-280 |
|
2×5.5 |
2 |
0-10 |
5200×900×950 |
4.00 |
4900×1100 |
|
GZD-500×120 |
600 |
200-400 |
|
2×5.5 |
2 |
0-10 |
5450×2000×900 |
5.20 |
5000×1200 |
|
ZSW-380×96 |
500 |
100-160 |
500-720 |
11 |
1 |
0 |
3882×1684×1340 |
4.21 |
3800×960 |
|
ZSW-490×110 |
580 |
120-280 |
500-800 |
15 |
1 |
0 |
4957×1841×1365 |
5.41 |
4900×1100 |
|
ZSW-590×110 |
600 |
200-350 |
500-800 |
22 |
1 |
0 |
6000×2500×2150 |
6.05 |
5900×1100 |
|
ZSW-600×130 |
600 |
400-560 |
500-800 |
22 |
1 |
0 |
6028×2580×2083 |
7.50 |
6000×1300 |
