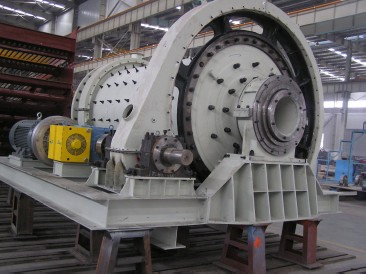

Rod Mill





MAIN FEATURES

Rod mill is applied to metal and nonmetal mine, water conservancy and glass building materials grinding various ore, rock and artificial sand which needs product granularity evenly. The energy-efficient rod mill that our company produces is all that rolling bearing support instead of bearing bush slip bearing support. It will save 10-20% energy compared with slip bearing support and improve production capacity by 10-20%.
Ball Mill



TECHNICAL SPECIFICATION

Model Barrel(mm) Barrel volume
(m3)		 Ball load
(t)		 Rotate speed of barrel
(r/min)		 Power
(kw)		 Discharge
(mm)		 Capacity
(t/h)		 Weight (t)
Diameter ×L
GMB1530 φ1500×3000 5.0 8 23 75 2.5-0.2 12-5.5 16.71
GMB1830 φ1800×3000 6.5 17 22.8 132 2.5-0.2 20-9.5 29.8
GMB2122 φ2100×2200 6.7 18 20.9 160 2.5-0.2 27-12 42.5
GMB2130 φ2100×3000 9.2 25 20.9 160 2.5-0.2 30-13 43.9
GMB2136 φ2100×3600 11.0 28 20.9 200 2.5-0.2 35-14.8 49.4
GMBZ2136 φ2100×3600 11.0 32.5 20.9 210 -5.0 61.5-43 49.9
GMB2140 φ2100×4000 12.2 31 20.9 220 2.5-0.2 38-17 50.3
GMB2145 φ2100×4500 13.8 35 20.9 250 2.5-0.2 43-19 51.8
GMB2430 φ2400×3000 12.2 31 19 250 2.5-0.2 47-22 56.0
GMBZ2430 φ2400×3000 12.2 31 19 250 -5.0 73-52 58.3
GMB2436 φ2400×3600 14.6 37 19 280 2.5-0.2 55-26 61.0
GMBZ2436 φ2400×3600 14.6 37 19 280 -5.0 84-60 62.4
GMB2730 φ2700×3000 15.3 35 17.5 315 5-0.8 125-37.5 75.6
GMB2736 φ2700×3600 18.4 42 17.5 355 5-0.8 150-45 81.8
GMBZ2740 φ2700×4000 20.5 47 17.5 400 5-0.8 165-50 84.3
GMB3040 φ3000×4000 25.9 50 16.2 500 5-0.8 206-62 130
GMB3245 φ3200×4500 33 56 15.5 630 5-0.8 228-70 138
GMB3248 φ3200×4800 34 60 15.5 710 5-0.8 240-74 142
GMB3645 φ3600×4500 40.8 78 14.5 800 5-0.8 270-83 168
GMB3654 φ3600×5400 50 94 14.5 1000 5-0.8 340-103 192


Note: All the above technical data are subject to our final confirmation.
