Mobile jaw Crusher


Application of Mobile Jaw Crusher:
The Mobile Jaw Crusher is applied to multistage crush large materials, and then screens the discharges according to their different specifications. The whole set plants is widely used to mine, building material, highway, rail way and hydropower industries, etc., finish crushing and screening operations at one time, produce required size and output for consumers.



REMARK:
1. A complete plant; all the machines are installed on the trailer, save the occupation space, enhances the working efficiency;
2. Strong flexibility; the mobility is very good, so it can extend with the raw material places or the construction place, and Mobile Crusher(Portable Crusher) can also make multiple matching, get to different product requirements;
3. High efficiency and saving energy;
4. Reliable working, convenient operation, and easy maintenance

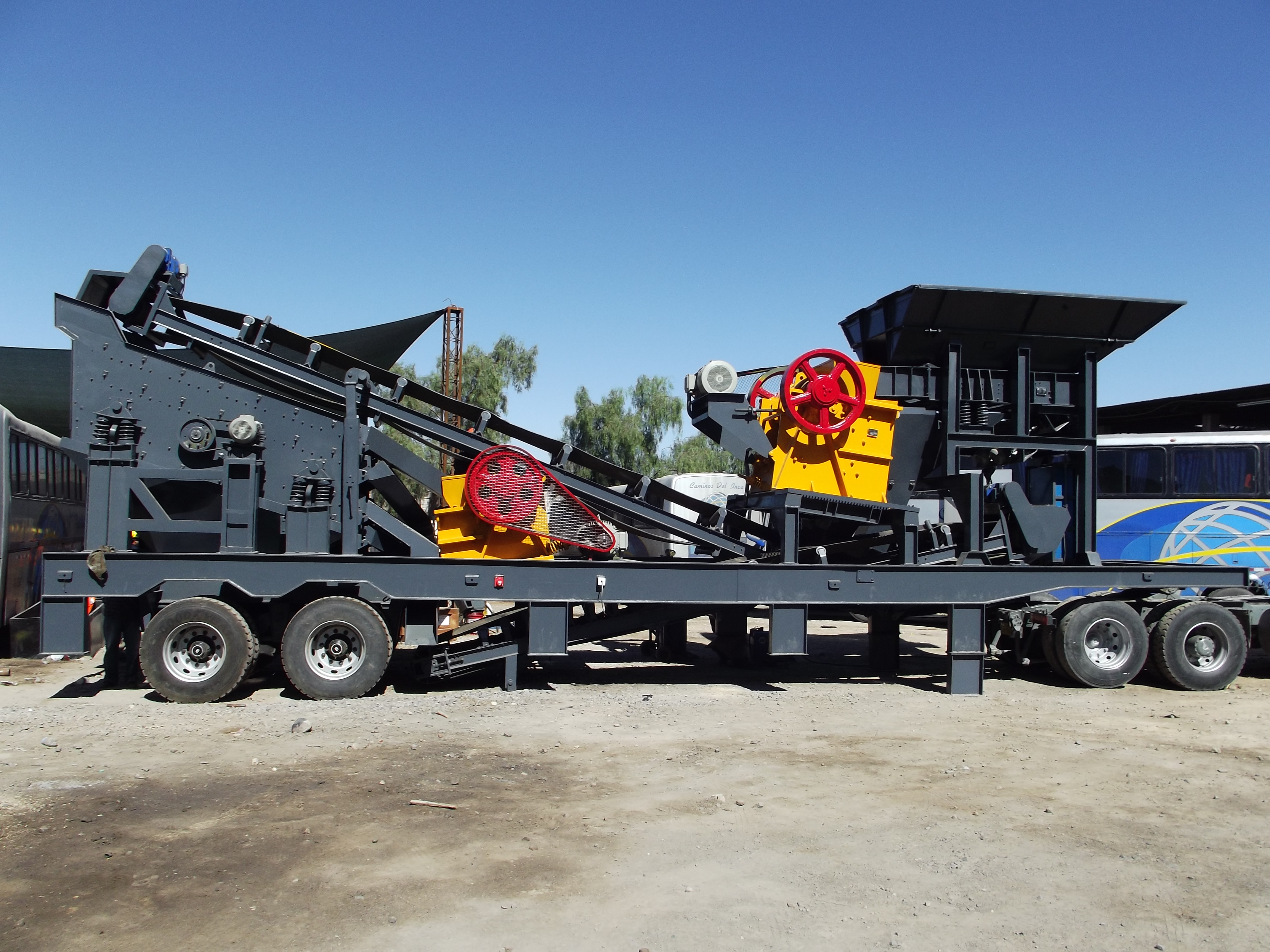

Portable Jaw Crushing Plant









TECHNICAL SPECIFICATION

Model WL938E69 WL1142E710 WL1349E1012
Vibrating Feeder ZSW380×96 ZSW420×110 ZSW490×130
Jaw crusher PE600×900 PE750×1060 PE1000×1200
Belt conveyor B650×7M B800×9M B1000×12M
Tyre configuration Double axles Three axles Four axles
Capacity  (t/h) 50-150 80-230 80-380
Power  (kW) 91.5 134 146
The maximum Feeding size (mm) 500 630 850
Discharge opening size  (mm) 65-160 80-140 195-265
Dimebsions  (L×W×H) (mm) 13200×3100×4600 15000×3300×5800 17000×3500×5800
Weight  (t) 42.6 55.6 73.6
