Mobile Impact Crusher



Application of Mobile Impact Crusher:
The Mobile Impact Crusher is applied to multistage crush large materials, and then screens the discharges according to their different specifications. The whole set plants is widely used to mine, building material, highway, rail way and hydropower industries, etc., finish crushing and screening operations at one time, produce required size and output for consumers.




REMARK:
1. A complete plant; all the machines are installed on the trailer, save the occupation space, enhances the working efficiency;
2. Strong flexibility; the mobility is very good, so it can extend with the raw material places or the construction place, and Mobile Crusher(Portable Crusher) can also make multiple matching, get to different product requirements;
3. High efficiency and saving energy;
4. Reliable working, convenient operation, and easy maintenance

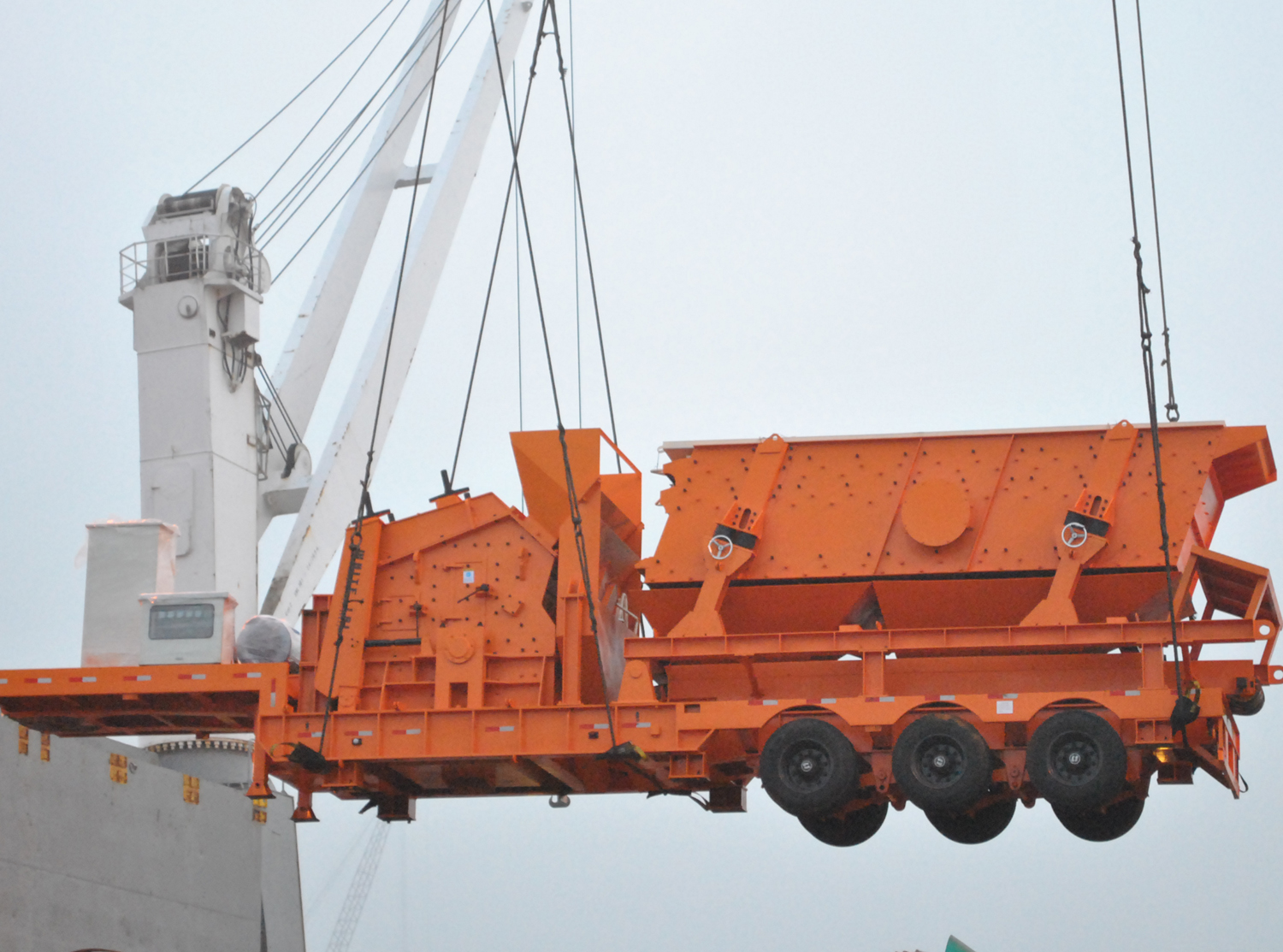

Portable Impact Crushing Plant










TECHNICAL SPECIFICATION

Model WL3S1548F1010 WL3S1854F1210 WL3S1860F1214 WL3S2160F1315
Shaker model 3YA1548 3YA1854 3YA1860 3YA2160
Impact crusher model PF1010 PF1210 PF1214 PF1315
Belt conveyor B500×7M B650×7M B650×8M B800×8M
Tyre configuration Double axles Double axles Three axles Three axles
Capacity (t/h) 30-100 56-120 65-180 81-220
Power  (kW) 70-90 128.5-150.5 154-190 210-297
The maximum Feeding size  (mm) 350 350 350 350
Dimebsions  (L×W×H) (mm) 125000×2800×6000 12500×3000×6500 13500×3000×6500 14000×3200×6800
Weight  (t) 42 46 51 57
