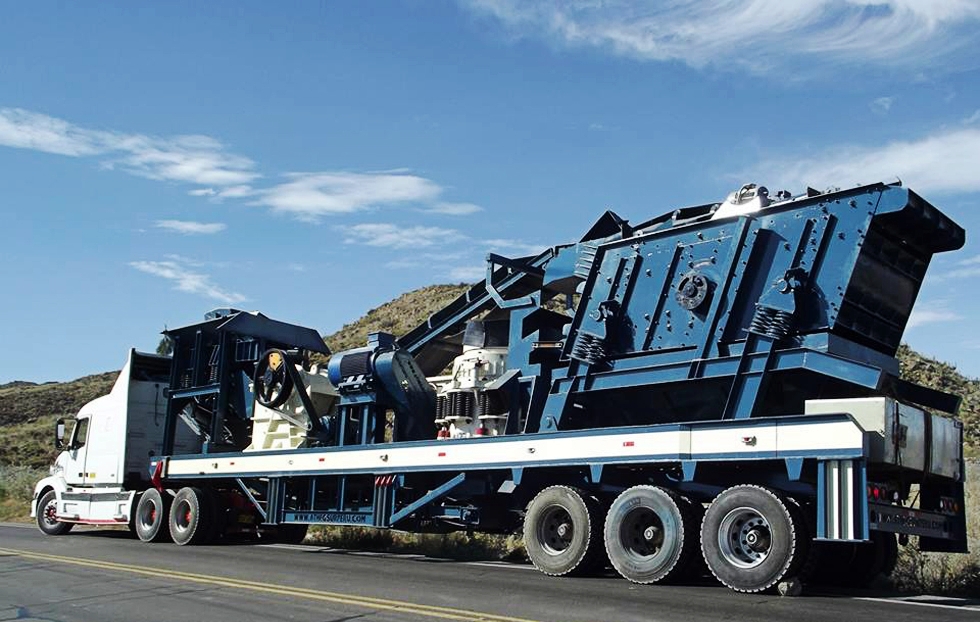

Mobile Cone Crusher
Application of Mobile Cone Crusher:
The Mobile Crusher is applied to multistage crush large materials, and then screens the discharges according to their different specifications. The whole set plants is widely used to mine, building material, highway, rail way and hydropower industries, etc., finish crushing and screening operations at one time, produce required size and output for consumers.
REMARK:
1. A complete plant; all the machines are installed on the trailer, save the occupation space, enhances the working efficiency;
2. Strong flexibility; the mobility is very good, so it can extend with the raw material places or the construction place, and Mobile Crusher(Portable Crusher) can also make multiple matching, get to different product requirements;
3. High efficiency and saving energy;
4. Reliable working, convenient operation, and easy maintenance
TECHNICAL SPECIFICATION
| Model | WL3S1548P90 | WL3S1848C100 | WL3S1854C116 | WL3S1860C130 | WL3S2160C138 |
| Shaker model | 3YA1548 | 3YA1848 | 3YA1854 | 3YA1860 | 3YA2160 |
| Cone crusher model | PYB900 | WLC1000 | WLC1160 | WLC1300 | WLC1380 |
| Belt conveyor | B500×7M | B650×7M | B800×7M | B800×8M | B800×8M |
| Tyre configuration | Double axles | Double axles | Double axles | Three axles | Three axles |
| Capacity (t/h) | 50-90 | 65-150 | 115-260 | 150-390 | 200-440 |
| Power (kW) | 75 | 134 | 160-165 | 190 | 260 |
| The maximum Feeding size (mm) | 115 | 160 | 180 | 200 | 215 |
| Min of Discharge size (mm) | 12 | 13 | 13 | 16 | 19 |
| Dimebsions (L×W×H) (mm) | 13000×2800×6400 | 13000×3000×6700 | 13000×3000×6700 | 14000×3000×6700 | 14000×3200×6700 |
| Weight (t) | 43 | 47 | 50 | 53 | 58 |
