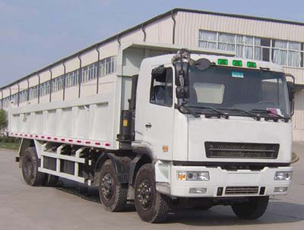

HN3160P21D2M
|
Product model |
HN3160P21D2M |
|
G.V.W |
16 ton |
|
Drive model |
6×2 |
|
Payload |
8 ton |
|
Engine model |
WD615.56 |
|
Engine Max. Power (kw/r/min) |
193/2200 |
|
Engine Emission Standard |
Euro II |
|
Transmission brand |
Shanxi FAST GEAR |
|
Transmission model |
9JS119 |
|
Rear Axle(drive axle)-load |
13 ton |
|
Front Axle-load |
7.5 ton x 2 |
|
Steering System |
HITACHI |
|
Wheelbase |
1850+4250mm |
|
Tire type |
Bias/Radial/Radial tubeless |
|
Tire model |
11.00-20/11.00R20/11R22.5 |
|
Tire number |
8+1 |
|
Oil Tank Volume |
320L |
|
Overall Dimensions(L×W×H) |
9680x2495x3450mm |
|
Body steel thickness |
Bottom 8mm/ Side 5mm |
|
Body lifting system |
Hydraulic central lift |
|
Front overhang / Rear overhang |
1370/2210mm |
|
Max. Speed () |
78 km/h |
